Compact coupling GBX
3-partclamptaper lock

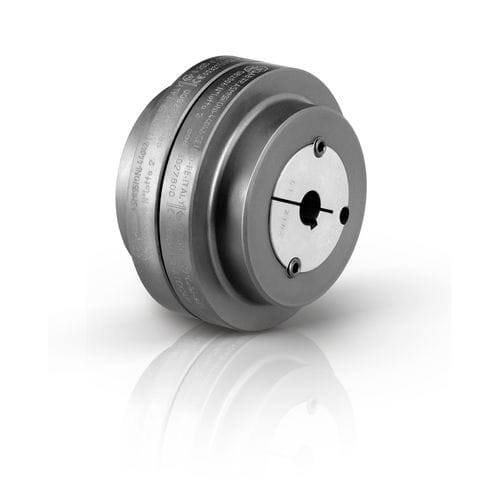

Compact coupling - GBX - AB TRASMISSIONI SRL - 3-part / clamp / taper lock
Compact coupling - GBX - AB TRASMISSIONI SRL - 3-part / clamp / taper lock
Add to favorites
Compare this product

Characteristics

Construction
compact, 3-part, clamp, taper lock
Product applications
for shafts, transmission, for pump, for the textile industry, for the food industry, for robots, for water, for railway applications, for mechanical power transmission, for robotics, for compressed air, motor, generator, gearbox, for machines, for chemical applications, for railway vehicles, blower, for agitators, horizontal operation, light-duty, for blowers, industrial
Performance
low noise and vibration, non-lubricated
Other characteristics
misalignment correction, ATEX, explosion-proof, disassemblable
Installation system
shaft sleeve
Torque

Min.: 48 Nm
(35.402983 ft.lb)

Max.: 13,200 Nm
(9,735.82037 ft.lb)

Rotational speed

Min.: 2,000 rpm
(12,566.3706 rad.min-1)

Max.: 7,000 rpm
(43,982.2972 rad.min-1)

Description

Hub-hub couplings with rubber elements for shaft-shaft coupling of both driving and driven machines by means of taper bushes already machined with cylindrical bore and keyway. Compared to the GCX series, they offer the benefits of smaller dimensions and the ability to clamp the couplings to shafts using the bush alone. Prompt delivery of ATEX compliant couplings, complete with bushes.
