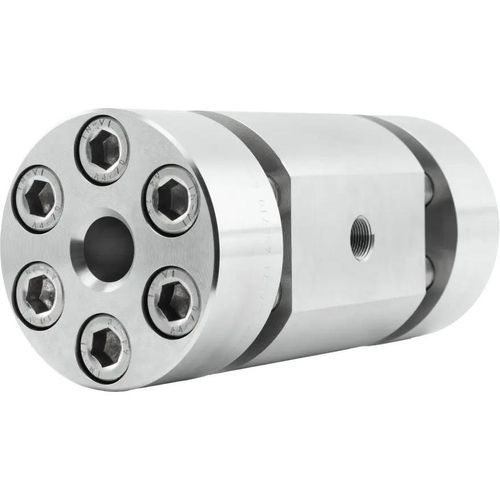

Sight glass for industrial applications Type 522

for chemicalsborosilicate glassthreaded

The high-pressure sight glass Type 522 is designed for demanding industrial applications to allow safe, real-time visual monitoring of processes. It combines a robust metallic body with high-quality sight plates for bilateral observation.

Construction and materials

• Body in corrosion-resistant stainless steel alloys (e.g. 1.4571); nickel-based alloys or Hastelloy® available on request for aggressive or thermally stressed environments.
• Two oppositely arranged sight plates of thermally tempered borosilicate glass, to DIN 7080.
• Internal threaded connections selectable according to DIN EN ISO 228-1 (BSP) or ANSI B 1.20.1 (NPT).
• Option for double glazing.

Product details

• Bilateral observation for visualization and targeted illumination.
• Suitable for liquid and gaseous media; special executions available for aggressive media.
• Standardized integration via internal threads.

Components

• Screws
• Cover flange
• Glass cushion
• Sight glass
• Gasket
• Body

Options

• Double glazing
• Materials on request: nickel-based alloys, Hastelloy®

Dimensions (excerpt)

• 1/4" — Di: 25, T (G): 14, T (NPT): 13.5, AD: 120
• 3/8" — Di: 25, T (G): 14, T (NPT): 13.8, AD: 120
• 1/2" — Di: 25, T (G): 16, T (NPT): 18.1, AD: 120
• 3/4" — Di: 35, T (G): 18, T (NPT): 18.6, AD: 140
• 1" — Di: 35, T (G): 20, T (NPT): 22.3, AD: 140
• 1 1/2" — Di: 50, T (G): 24, T (NPT): 22.8, AD: 180
• 2" — Di: 50, T (G): 27, T (NPT): 23.2, AD: 180

Technical specifications

• Model/series: Type 522
• Manufacturer: ACI Industriearmaturen GmbH
• Materials: corrosion-resistant stainless steel alloys such as 1.4571; optional nickel-based alloys or Hastelloy® on request
• Sight plates: thermally tempered borosilicate glass, to DIN 7080
• Thread standards: DIN EN ISO 228-1 (BSP) or ANSI B 1.20.1 (NPT)
• Nominal pressure (PN): 63, 100, 160, 250, 320, 400
• Maximum working pressure: max. 400 barg
• Nominal sizes (NPS/DN): 1/4" – 2"
• Temperature ratings (examples): 80 °C, 130 °C, 150 °C, 175 °C, 180 °C, 200 °C, 280 °C, 300 °C
• Media: for liquid and gaseous media
• Design: bilateral viewing for observation from both sides and targeted illumination
• Certificates: TÜV ISO 9001; TÜV SÜD 2014/68/EU (Annex III); stainless steel certification
• Custom execution: special sizes and other standards available upon request
