Chemical sight glass Type 620A

stainless steelfor hygienic applicationsmonitoring

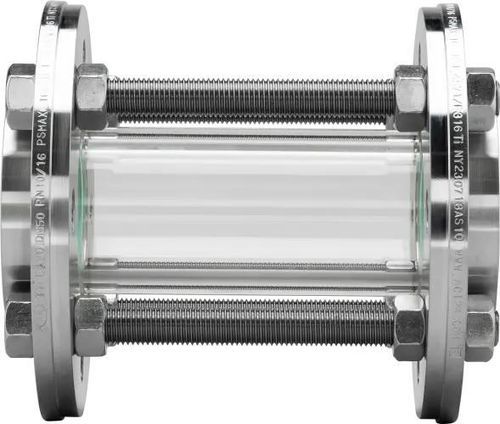

The tubular sight glass type 620A offers a full 360° view of the process medium via a borosilicate glass cylinder and is designed for flange connections per ASME B16.5.

Overview

• Complete 360° visual inspection through a borosilicate glass tube.
• Flanged connection on both ends; standard flanges in stainless steel, other materials on request.
• Suitable for liquid and gaseous media; near dead-space-free design for hygienic processes.

Materials & sealing

• Glass: borosilicate glass 3.3 (DIN ISO 3585) for high temperature and chemical resistance and excellent optical clarity.
• Standard flange material: stainless steel 1.4571 (316Ti); special alloys (Hastelloy®, duplex steels, other high-performance alloys) available on request.
• Seals: choice from a large range (>50) of flat gasket materials, e.g. PTFE (Teflon®), NBR, novaphit® MST-XP, KlingerSil® C4400 and classic fiber materials.

Standards & certification

• Design, strength calculation and manufacture according to AD 2000 and PED 2014/68/EU.
• Flange connection compatible with ASME B16.5 RF 150 lbs mating flanges.
• Certified quality (TÜV / ISO references available on product page).

Options

• Special lengths.
• Impact protection jacket made of PETg.
• Impact protection jacket made of perforated sheet metal.

Main components

• Nuts
• Flange
• Threaded rod
• Borosilicate glass cylinder
• Gasket

Dimensions (selected NPS with key values)

• NPS 1/2": LK 60 mm · DF 35 mm · D 95 mm · PS 16 barg
• NPS 3/4": LK 70 mm · DF 43 mm · D 105 mm · PS 16 barg
• NPS 1": LK 79 mm · DF 51 mm · D 115 mm · PS 16 barg
• NPS 1 1/2": LK 98 mm · DF 73 mm · D 150 mm · PS 16 barg
• NPS 2": LK 121 mm · DF 92 mm · D 165 mm · PS 16 barg
• NPS 3": LK 152 mm · DF 127 mm · D 200 mm · PS 10 barg
• NPS 4": LK 190 mm · DF 157 mm · D 230 mm · PS 10 barg
• NPS 6": LK 241 mm · DF 216 mm · D 285 mm · PS 7 barg
• NPS 8": LK 298 mm · DF 270 mm · D 345 mm · PS 5 barg

Characteristics / technical specifications

• Denomination: 620A
• Pressure rating: Class 150 lbs (flange)
• Maximum working pressure (depends on NPS): up to 16 barg for smaller sizes (see dimensions per NPS)
• Temperature resistance: heat resistant up to 300 °C (options in product technical data)
• Nominal sizes: NPS 1/2" – 8"
• Standard flange connection: ASME B16.5 RF 150 lbs
• Standard flange material: stainless steel 1.4571 (316Ti); special alloys on request (Hastelloy®, duplex, etc.)
• Glass: Borosilicate glass 3.3 (DIN ISO 3585)
• Sealing: wide selection of flat gasket materials (>50), incl. PTFE (Teflon®), NBR, novaphit® MST-XP, KlingerSil® C4400
• Design/manufacture: AD 2000 and PED 2014/68/EU compliant
• Applications: for liquid and gaseous media; hygienic, low dead-space design
• Custom manufacturing and accessories available (impact protection covers, special lengths, etc.)
