Sight glass for industrial applications Type 622

monitoringfor hygienic applicationsstainless steel

Product overview

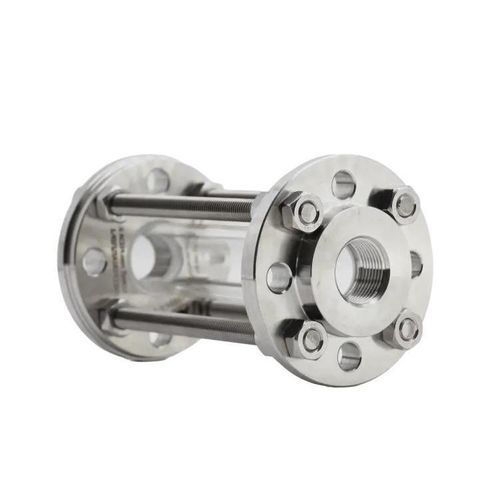

The ACI tubular sight glass Type 622 provides a full 360° view of the process medium through a borosilicate glass cylinder mounted between two flanges. Designed for visual monitoring in piping and equipment, it is supplied with internal (female) thread according to DIN EN ISO 228-1 and is suitable for liquid and gaseous media.

Key features

• 360° visual monitoring via a borosilicate glass cylinder (Borosilicate glass 3.3, DIN ISO 3585).
• Standard flanges in stainless steel 1.4571 (316Ti); alternative flange materials on request including P265GH, Hastelloy®, duplex steels and other alloys.
• Wide choice (>50) of flat gasket materials: fiber, PTFE (Teflon®), NBR, novaphit® MST‑XP, KlingerSil® C4400, etc., selectable by medium, temperature and pressure.
• Nearly dead-space-free design for hygienically demanding processes.
• Optional impact protection (PETg cover or perforated sheet metal) for high mechanical risk areas.
• Designed for maximum working pressure up to 16 barg and temperature resistance up to 300 °C depending on configuration.

Selectable sizes, ratings & options

• Nominal sizes (NPS): 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" .
• Nominal pressure (PN): 16 (max. working pressure up to 16 barg).
• Temperature ratings: 80 °C, 130 °C, 150 °C, 175 °C, 180 °C, 200 °C, 280 °C, 300 °C (depending on configuration).
• Customization: custom lengths; impact protection in PETg or perforated sheet metal; other flange standards and materials on request.

Technical specifications

• Glass material: Borosilicate glass 3.3 (DIN ISO 3585).
• Standard flange material: Stainless steel 1.4571 (316Ti); optional: P265GH, Hastelloy®, duplex steels, other alloys on request.
• Thread: Internal / female thread according to DIN EN ISO 228-1.
• Suitable media: liquids and gases.
• Maximum operating pressure: up to 16 barg (PN 16, depending on size/configuration).
• Maximum temperature (depending on configuration and gasket): up to 300 °C.
• Sealing: flat gaskets from a wide range (>50) of materials (PTFE, NBR, novaphit® MST‑XP, KlingerSil® C4400, fiber gaskets, etc.).
• Options: special lengths, impact protection (PETg or perforated sheet metal), special materials on request.
• Dimensions & weights per nominal size:
  • 3/8" — D = 95 mm; Weight = 2.3 kg; PS = 16 barg
  • 1/2" — D = 95 mm; Weight = 2.3 kg; PS = 16 barg
  • 3/4" — D = 105 mm; Weight = 2.9 kg; PS = 16 barg
  • 1" — D = 115 mm; Weight = 3.5 kg; PS = 16 barg
  • 1 1/2" — D = 150 mm; Weight = 6.2 kg; PS = 16 barg
  • 2" — D = 175 mm; Weight = 8.2 kg; PS = 16 barg
• Other sizes, lengths and flange standards available on request.
