Sight glass for industrial applications Type 595

monitoringATEXborosilicate glass

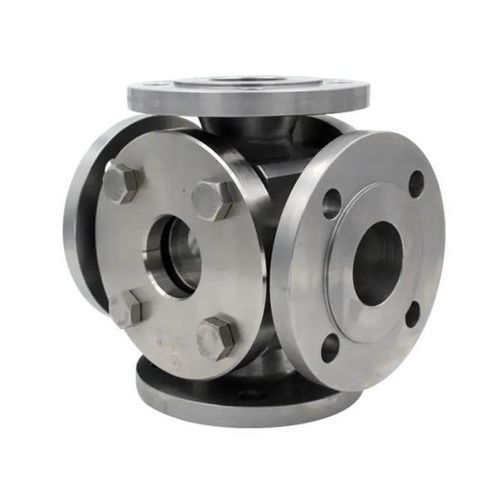

The flow sight glass type 595 is a robust 4-way welded flow sight glass with two sight openings designed for comprehensive process monitoring and easy installation between flanges according to DIN EN 1092-1.

Product information

• 4-way design with two sight openings allows observation of flow from different directions and comprehensive process control.
• Welded construction provides high mechanical robustness; standard lengths according to DIN EN 558-1 make the sight glass suitable for retrofitting in existing systems.
• Designed for operating pressures up to 400 barg; high operating pressures are achievable even at larger nominal sizes.
• Standard glass: borosilicate (suitable up to 280 °C). With an additional mica protection disc or in combination with MAXOS® safety sight glasses (DIN 7080) temperatures up to 300 °C or 320 °C are possible.
• Sealing is performed with flat seals from a wide range of materials, including fiber-based seals and more demanding materials such as PTFE (Teflon®), NBR, novaphit® MST-XP, KlingerSil® C4400 and other brand seals.

Technical data

• Nominal sizes DN:
  • 50
  • 65
  • 80
  • 100
  • 125
  • 150
  • 200
• Nominal pressure PN:
  • 16
  • 40
  • 63
  • 100
  • 160
  • 250
  • 320
  • 400
• Temperature options:
  • 80 °C
  • 130 °C
  • 150 °C
  • 175 °C
  • 180 °C
  • 200 °C
  • 280 °C
  • 300 °C
  • 320 °C
• Options:
  • Wiper SGW with PTFE or silicone wiper blade
  • LED light for Ex and non-Ex areas
  • FEP or Halar® coating
  • Mica protection discs
  • Double glazing type 595D
  • Special constructions / custom designs
• Drawing / dimensions notes:
  • Total length (BL) executed according to DIN EN 558-1 FTF 2 where constructively possible.
  • Flange connections according to DIN EN 1092-1.
  • Free view (D1) by DN:
    • DN 50: D1 = 100
    • DN 65: D1 = 150
    • DN 80: D1 = 175
    • DN 100: D1 = 175
    • DN 125: D1 = 175
    • DN 150: D1 = 175
    • DN 200: D1 = 240

Characteristics / technical specifications

• Maximum operating pressure: up to 400 barg.
• Intended media: suitable for liquid and gaseous media.
• Nominal sizes available: DN 50–200.
• Standard glass material: borosilicate; higher temperature protection with mica or MAXOS® safety glass according to DIN 7080.
• Face-to-face length: standard according to DIN EN 558-1 (FTF 2) where applicable.
• Flange connections: compliant with DIN EN 1092-1.
• More than 50 sealing material options available; custom sealing solutions possible.
• Accessories available (e.g. sight glass wiper, LED lights, FEP protective screens, round mica discs).
• Custom manufacturing and special constructions possible on request.
• Brand: ACI Industriearmaturen GmbH
• Model: type 595
