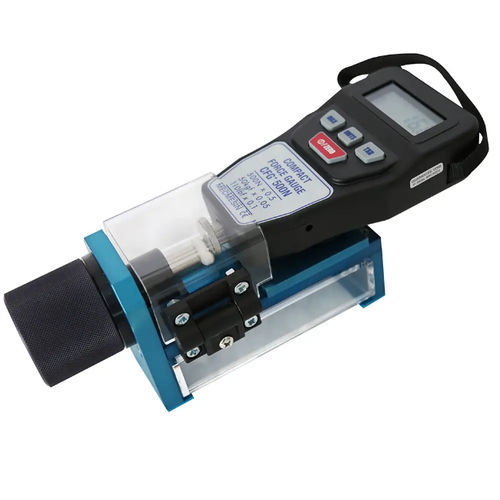

Handheld hardness tester

gaugebatterytablet

To ensure that pharmaceutical pills and tablets are compliant, a tablet hardness tester can accurately analyse the breaking strength of a tablet and its structural integrity. Description The DCX system allows the precise and completely autonomous measurement of tablet hardness by applying a compressive force. The breaking load is read on a calibrated force gauge. A rotating ring exerts a force on the tablet until it breaks. A dynamometer equipped with a circular support, recovers the effort and displays the breakage value of the tablet. After breaking, it falls into a low collection container. A protective cover prevents accidental splashing on the operator. The reading is taken digitally, on the 200 N or 500 N dynamometer depending on the type of equipment chosen. Benefits: Portable and battery operated unit Retention bin for broken tablets Anti-splash cover Units of measurement N, KN, Kg, lbs and oz Delivered with: 4 AA batteries Cofrac connected calibration certificate Instructions for use Options: EU charger US charger Other force gauges on request Other tablet sizes on request Technical informations Accuracy - +- 0,5% of full scale Spacing for tablet - 30 mm Measurements units - KN, Kg, lbs and oz Power supply - 4 x 1.5V AA batteries Chassis - Anodised Aluminium
