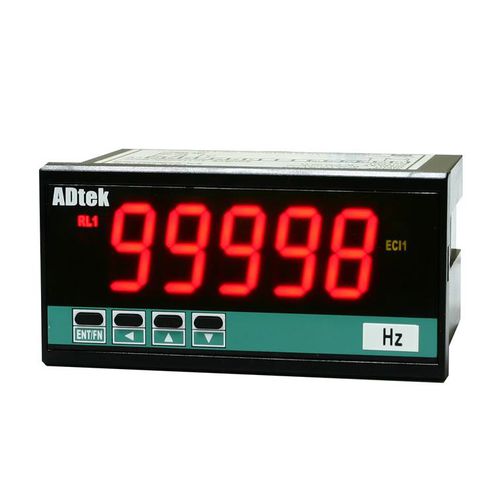

Frequency panel meter CS2-F

5-digitpanel-mountRS-485

CS2-F 5 Digits Frequency Meter (96x48mm) Frequency Meter designed for high accuracy measurement, display, control and communication (Modbus RTU mode) of pulse(Frequency) or AC Frequency. The innovation feature is auto-range input from 0.01Hz~ 100KHz(~140KHz in option). The display resolution will be auto-changed to show the highest according to input frequency. They are also building in 4 Relay outputs, 3 External Control Inputs, 1 Analogue output and 1 RS485(Modbus RTU Mode) interface with versatile functions such as control, alarm, re-transmission and communication for a wide range of testing and machinery control applications. Please refer to the detail description on pages 2/33~7/33. There are not only controllers, but also an I/O interface in any system. ADtek built in difference ideal for External Control input and Relay output as like as I/O module of PLC. It’s very connivance to achieve remote monitoring and control by CS2 series. SPECIFICATIONS: ● Accuracy: ± 0.005%; Display range: 0~99999; Auto-range with Decimal Point auto changed according to input frequency ● Optional 4 relay can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch / Go energized with Start Delay / Hysteresis / Energized & De-energized Delay functions, or to be a remote control ● Analogue output and RS 485 communication port in option ● 3 external control inputs can be programmed individual to be Tare (Relative PV) / PV Hold / Maximum or Minimum Hold / DI (remote monitoring) / Reset for Relay Energized Latch…. In standard ● EMC, EMI, LVD Approved & RoHS
