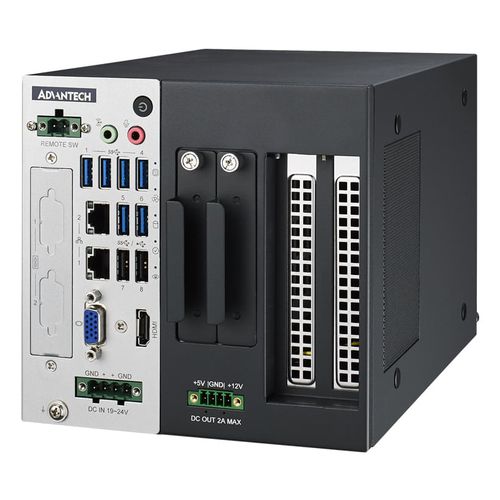

Expansion PC IPC-220

wall-mountedIntel® Core i5Intel® Core i7

Compact Industrial Computer Chassis for PCE-2000 Series CPU Board - Compact IPC chassis with two front expansion slots - Shockproof drive bay for two 2.5" HDD/SSD - Single-side I/O for easy maintenance - Support Advantech iDoor - Bidirectional to mount on wall or workbench - Qualified for AWS(Amazon Web Service) IoT Greengrass Specifications: - Front I/O Interface: USB 2.0 (2), USB 3.0 (6), Serial Port (2 x RS-232/422/485) - Environment: Operating Shock (-), Operating Vibration (-) - Graphics: Graphic Interface (HDMI + VGA), Chipset Integrated (Integrated Intel HD Graphics) - Miscellaneous: Control (Power Switch) - Physical Characteristics: Dimension (W x H x D) (-), Weight (Net) (-) - Power Supplies: Power Input (-), Power Type (-) - Storage: CFast (-), HDD (2 x 2.5" SSD/HDD Easy-Swap Bay) - WatchDog Timer: Interval (Programmable 1~255 sec), Output (System Reset) - LAN: Controller (LAN1: Intel® I219-V, LAN2: Intel® I210-AT) - Memory: System Max Capacity (64 GB), Slots (2 x 260-pin SO-DIMM), Type and Speed (DDR4 2666 MHz) - Processor System: CPU (Intel Core i3/i5/i7), Chipset (-), Core Number (4/6/8/10), BIOS (AMI 256 Mbit SPI Flash), Base Frequency (Based on Intel CPU spec), L3 Cache (8 MB/6 MB/4 MB/3 MB/) - Cooling: Air Filter (Yes) - Expansion Interface: PCI Express x 16 (-), PCI Express x 4 (-), PCI (-)
