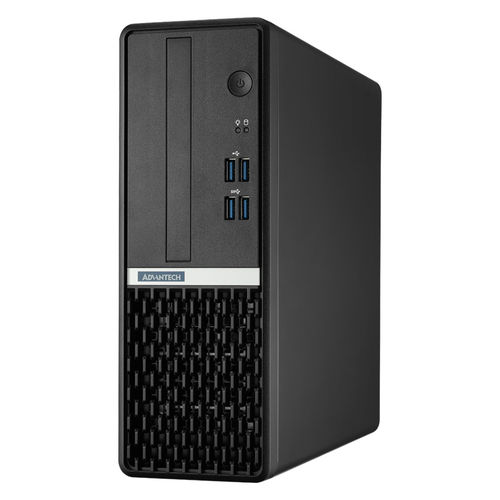

Expansion PC IPC-320

towerIntel® Core™ i9-12900EIntel® Core™ i9-12900TE

Compact Size Tower IPC with 12th / 13th Gen Intel Core i CPU Socket (LGA 1700) and 250W PSU. - Intel 12th / 13th generation Core i9/i7/i5/i3 & Pentium/Celeron processor with H610E chipset - Design for operator IPC and application with space limit - Dual USB 3.2 and dual USB 2.0 port on both front and rear side - Dual Independent Display (HDMI/ DP) - 2 low profile Expansion slots (PCIe x16 and PCIe x4) - Built in with 250W 12V and 5V output only single power supply - Qualified for Amazon Web Service(AWS) IoT Greengrass - Support Windows 11 IoT Enterprise LTSC - Processor System: Intel Core processors (14th/13th/12th Gen) - Socket Q'ty: 1 x LGA1700 - TDP: Up to 65 W - Core Number: Up to 24 - L3 Cache: Up to 36 MB - Chipset: Intel H610E - BIOS: AMI 256 Mbit SPI Flash - Expansion: PCIe x16: 1, PCIe x4: 1 - Memory: Dual-channel DDR4 3200 MHz (non-ECC), System Max Capacity: 64 GB, Per Slot Max Capacity: 32 GB, Slots: 2 x 288-pin DDR4 - Graphics: Intel HD Graphics - LAN: Connector: 2 x RJ45, Speed: 10/100/1000/2.5G Mbps (2.5G for LAN2 only), Controller: LAN1: Intel I219-V, LAN2: Intel I226-V - SATA: Max. Data Transfer Rate: 600 MB/s, Channel: 3 - LED and Switch: LED: 2 (PWR, HDD), Button: 1 x Power on/off switch - Rear I/O Interface: Display: 1 x HDMI, 1 x DP 1.2, LAN: 2, USB: 2 x USB 3.2 (Gen1), 2 x USB 2.0, Audio: 2 (Mic-in, Line-out) - Internal Connector: USB Type-A: 1, SATA: 1, M.2: M key (link x2), mSATA: 1 - Drive Bay: Slim Optical Drive: 1, 3.5": 1 - Environment: Operating Temperature: 0 ~ 40° C (32 ~ 104° F), Non-Operational Temperature: -20 ~ 60° C (-4 ~ 140° F), Operating Shock: 10 G, half-sine wave, 11 ms duration, Operating Humidity (Non-condensing): 85% RH @ 40 °C, Non-Operating Humidity (Non-condensing): 95% RH @ 60 °C - Physical Characteristics: Dimension (W x H x D): 95 x 270 x 300 mm, Weight (Net): 3.31 kg (7.29 lb) - Certification: EMC, Safety: EMI Class B
