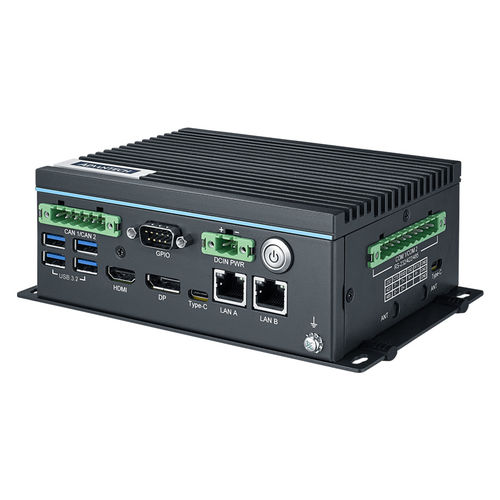

IoT Edge gateway UNO-238 V2

IoTindustrialserial

The UNO-238 V2 is a compact IoT Edge Computer equipped with an Intel® 12th Gen. Core™ i Processor. It offers a range of features suitable for industrial applications: - 12th Gen Intel® Core™ i Processor up to 10 Cores - Dual Channel DDR5-4800 up to 64GB - M.2 E-Key, B-Key, M-Key (support NVMe) expansion for storage/wireless - Equipped with CANBus for reliable communication - DC-in terminal block for wiring flexibility - Supports multiple displays for ThinManager solution - Supports software APIs, WISE DeviceOn, WISE Edge365 Certifications: - CB, UL, CE, FCC, CCC, BSMI Specifications: - Ingress Protection: IP20 - Operating Temperature: -20~60 °C (-4~140 °F) - Relative Humidity: 5~95% RH (non-condensing) - Shock Protection: 50 G, half sine - Storage Temperature: -40~85 °C (-40~185 °F) - Vibration Protection: 2 Grms, random - CPU: Intel® Core™ i3-1215UE 1.2GHz Alder Lake 6-Core, Intel® Core™ i5-1245UE 1.5GHz Alder Lake 10-Core, Intel® Core™ i7-1265UE 1.7GHz Alder Lake 10-Core - Graphics Engine: Intel® Iris Xe® Graphics - Hardware Security: TPM 2.0 - Memory: 2 x SO-DIMM Slot with DDR5 4800MHz - OS Support: Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux - Power Input: 12~24 VDC - Storage: 1 x SATA M.2 SSD slot (2280 M-Key) - LED Indicators: PWR - Watchdog Timer: 1~255 s - I/O: 2 x CAN Bus, 4 x USB 3.2, 2 x Type C, 1 x GPIO - Displays: 1 x HDMI, 1 x DP - Expansion: 1 x M.2 B key, 1 x M.2 E key - LAN Ports: 1 x 10/100/1000 Mbps, 1 x 10/100/2500 Mbps - Power Connector: 1 x 10-Pin Terminal Block - Serial Ports: 2 x RS 232/422/485 - Dimension (W x H x D): 150 x 107 x 60 mm - Enclosure: Aluminum housing - Weight (Net): 1.8 kg (3.96 lb) - Mounting: Stand, Din-rail
