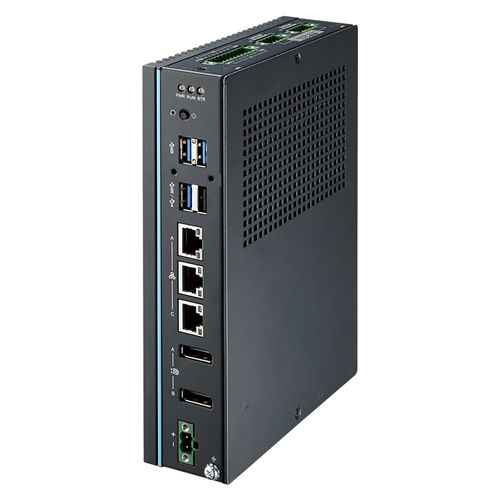

EDGE PC UNO-148

DIN raildual-corequad-core

Compact DIN-Rail Edge Controller with 11th Gen Intel® Core™ i CPU - Port isolation for 8 x DI, 8 x DO, 4 x COM - Supports M.2 M key 2280 NVMe SSD storage, M.2 B key 2242 storage, 3042/3052 cellular modules, and M.2 E Key 2230 wi-fi modules - Dual 2500BASE-T Ethernet supports Time-Sensitive Network(TSN) technology - Remote out-of-band (OOB) power management with Advantech iBMC technology - Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified Certifications: - CB, UL, CE, FCC, CCC, BSMI Support Links: - Weight (Net): 1.3 kg - Enclosure: Aluminum housing - Mounting: DIN-rail - Power Input: 10~36 VDC - OS Support: Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux - Hardware Security: TPM 2.0 - CPU: Intel® Core™ i3-1115G4E 2.2GHz Dual core, Intel® Core™ i5-1145G7E 1.5GHz Quad core, Intel® Core™ i7-1185G7E 1.8GHz Quad core - Memory: 1 x SO-DIMM with 8 GB DDR4 3200 MHz, 1 x DDR4 SO-DIMM Slot - Graphics Engine: Intel® Iris® X - Storage: 1 x NVMe M.2 SSD slot (2280 M-key), 1 x M.2 B key - Serial Ports: 4 x isolated RS-232/422/485 - LAN Ports: 2 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps - USB Ports: 3 x USB 3.2, 1 x USB 2.0 - Power Connector: 1 x 2-Pin Terminal Block - Displays: 2 x DP - Expansion: 1 x Full-size mPCIe, 1 x M.2 E key, 1 x M.2 M key, 1 x M.2 B key - Relative Humidity: 10~95% RH (non-condensing) - Storage Temperature: -40~85 °C (-40~185 °F) - Ingress Protection: IP20 - Shock Protection: 50 G, half sine - Vibration Protection: 4 Grms, random - Operating Temperature: -20~60 °C (-4~140 °F) - General Digital I/O: 8-ch DI, 8-ch DO
