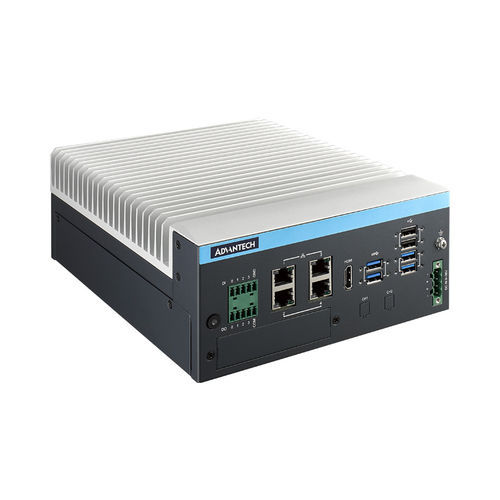

GPU PC MIC-733-AO series

AIwall-mounteddesktop

AI System Based on NVIDIA® Jetson AGX Orin™ - Compact fanless design - Embedded with NVIDIA® Jetson AGX Orin™ up to 275 TOPS - Supports 4 x GbE (optional PoE), 4 x USB 3.2 Gen 2 (10 Gbit/s) - Supports 2 x mPCIe, 2 x Nano SIM slots - Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices Certifications: - CB/UL/CE/FCC/BSMI/CCC (No RED certification) Caractéristiques / Spécifications techniques : - Processor System: NVIDIA Jetson Series - CPU: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 - GPU: 1792-core NVIDIA Ampere GPU with 56 Tensor Cores, Maximum Operating Frequency: 930 MHz - AI Performance Reference: Up to 275 TOPs - Memory: 32GB 256-bit LPDDR5 DRAM - Ethernet: 4 x 10/100/1000 Mbps (Optional PoE support, IEEE 802.3af/at) - Display: HDMI (Max. resolution 3840x2160 @ 60Hz) - USB: External: 2 x USB 3.2 Gen 2, 1 x USB 2.0 Internal: 1 x USB 2.0 (by pin header) - Digital I/O: 4-ch DI, 4-ch DO - Power Switch: 1 x Power ON/OFF Button - Serial Port: 2 x RS-232/422/485 (On-board pin header) - OTG USB: 1 x Micro USB - iModule (Optional): 1 x PCIe x8 (MIC-75M10-00A2) - Mini PCIe: 1 x mPCIe (Signal: PCIe + USB 2.0) - SIM: 2 x Nano SIM slots - M.2: 1 x M.2 3052 (B-Key, Signal: USB) - GMSL: 2-ch GMSL2.0 with FAKRA connectorsV - Storage: 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) - SD Card: 1 x Micro SD - Power Mode: AT/ATX (Default AT) - Power Input: 9 ~ 36 VDC, 16-4A - Operating Temperature: -10 ~ +60 °C with 0.7 m/s airflow (MaxN mode) - Operating Humidity: 95% @ 40 °C (non-condensing) - Vibration: 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis - Shock: 10G / 11ms - Dimension (W x H x D): Core Module: 192 x 230 x 87 mm (7.55" x 9.05" x 3.43") Plus MIC-75M10: 192 x 230 x 111 mm (7.55" x 9.05" x 4.37") - Weight: 4.5 kg (9.9 lb) - Installation: Desktop / Wall mount - Jetpack: Above 5.0
