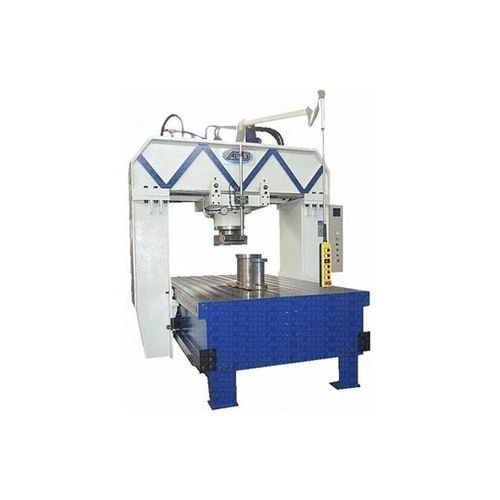

hydraulic press / straightening

Add to MyDirectIndustry favorites
hydraulic press / straightening hydraulic press / straightening
{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Function:

    straightening

  • Opening:

    500 mm

  • Force:

    2,942 kN

Description

WITH THIS KIND OF PRESSES
THE PIECE TO BE STRAIGHTENED OUT MAY BE WORKED ON ANY OF ITS PARTS
WITHOUT SHIFTING ITS INITIAL POSITION
MOVABLE HEAD PRESS WITH POWER-DRIVEN MOVEMENTS
POWER 300TONS
2000x3000x800mm WORK TABLE
STROKE 500mm
11Kw ENGINE
PROPORTIONAL SOLENOID VALVE CONTROL WITH THREE MANUFACTURING CYCLES:
MANUAL, SEMIAUTOMATIC, AUTOMATIC
AND WITH BIMANUAL PUSH-BUTTON BRIDGE CRANE CONTROL PANEL
COMPLETE WITH 6 PISTONS FOR LIFTING MATERIALS
WORK TABLE EQUIPPED WITH FOUR T SLOTS WITH M20 TRANSVERSALLY
COMPLETE WITH LIMIT SWITCH FOR STROKE REGULATION
UPSTROKE/DOWN STROKE, RIGHT/LEFT AND FORWARD/BACKWARD
