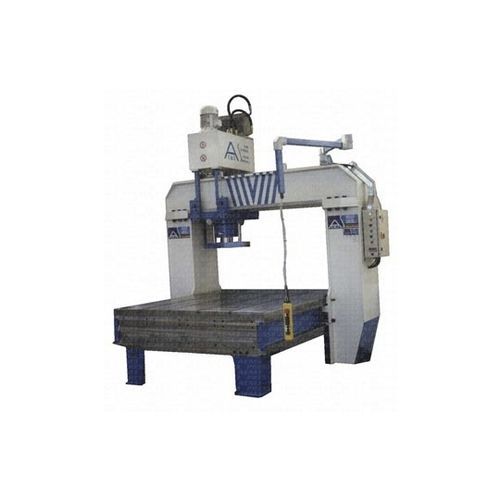

hydraulic press / straightening
200 t

Add to MyDirectIndustry favorites
hydraulic press / straightening hydraulic press / straightening - 200 t
{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Function:

    straightening

  • Force:

    1,961.3 kN

Description

WITH THIS KIND OF PRESSES
THE PIECE TO BE STRAIGHTENED OUT MAY BE WORKED ON ANY OF ITS PARTS
WITHOUT SHIFTING ITS INITIAL POSITION
FLOATING CYLINDER PRESS FOR PLATE
POWER 200TONS
2000x2500x800mm WORK TABLE
STROKE 500mm
7.5Kw ENGINE
PROPORTIONAL SOLENOID VALVE CONTROL WITH THREE MANUFACTURING CYCLES:
MANUAL, SEMIAUTOMATIC, AUTOMATIC
AND WITH BIMANUAL PUSH-BUTTON BRIDGE CRANE CONTROL PANEL
COMPLETE WITH BARS FOR LIFTING MATERIALS
WORK TABLE EQUIPPED WITH FOUR T SLOTS WITH M20 TRANSVERSALLY
AND WITH THE POSSIBILITY OF ADDING A SECOND WORK TABLE
SINCE IT IS ALREADY FURNISHED WITH THE NECESSARY HOLES
COMPLETE WITH LIMIT SWITCH FOR STROKE REGULATION
UPSTROKE/DOWN STROKE, RIGHT/LEFT AND FORWARD/BACKWARD
