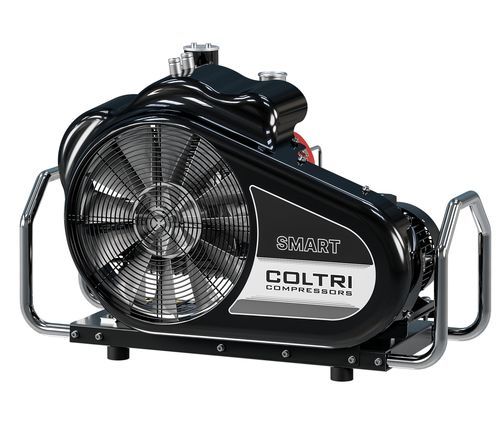

Piston compressor Smart

breathing airelectrically-poweredportable

SMART breathing air compressors represent the evolution of the Standard, one of the best known and best-selling models in the world. Monobloc in aluminum, Gooseneck in forged steel Splash lubrication Forged aluminum connecting rods Main roller bearings Roller connecting rod bearings 1st and 2nd stage cylinders in aluminum with hard nicasil coating 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating 3rd stage cylinder in special treated steel. Stainless steel intake and exhaust valves Interstage cooling pipes in stainless steel Separator after the 2nd and 3rd stage Safety valves after each stage Maxifilter filter system The Maxifilter purification system enables reliable treatment of the breathing air according to DIN EN 12021¹ when using original filter artridges. Placed after the last compressor separator and before the ressure maintenance valve, it has the separator after the 2nd and 3rd stage to create a first, fundamental barrier against humidity. The filtering capacity with inlet air at 20 ° C and 200 bar is 620m³. Motor One of the fundamental parts of the compressor: the motor transfers the motion to the pumping unit through the belt. On this model is available the single-phase or three-phase electric motor from 3 to 5, 5 kW. Chassis Essential and compact, this frame is designed to facilitate portability. The tilting motor-holder plate guarantees the constant tension of the V-belt. The protective casing in thermo-formed material conveys the cooling air on the cylinders and on the inter-stage pipes. This guarantees a high compression efficiency.
