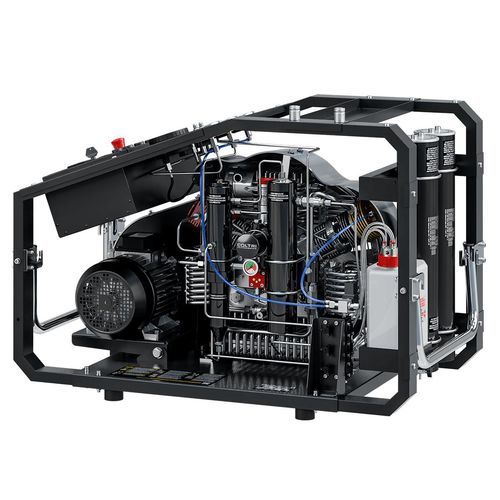

Air compressor unit Ergo TPS

pistonhigh-pressuremulti-stage

Overview
The Ergo TPS is a compact, high-pressure Prime Line compressor engineered for the reliable production of breathing air. It combines a 3-stage pumping unit, a dual-cartridge Hyperfilter purification system and an open service-friendly frame to deliver continuous operation and simplified maintenance.

3-stage high pressure pumping unit

• Aluminum monoblock construction
• Forced lubrication by low-pressure gear pump
• 10 µm suction filter
• Pipes, fittings and nuts in AISI 316 stainless steel
• Intermediate condensate separator after the second stage
• Double-acting high-pressure final condensate separators
• Safety valves after each compression stage
• Die-cast aluminum cylinders with Nicasil barrel coating for improved heat dispersion
• Forged aluminum connecting rods; forged steel crankshaft
• Stainless steel valves in 2nd and 3rd stages
• Heavy-duty roller bearings and hardened steel third stage with 5 special cast-iron segments
• Thrust pads on 2nd and 3rd stages to eliminate lateral piston forces
• Integrated Hyperfilter filtration system

Electric motor
Available with single-phase or three-phase electric motor options (approx. 5.5–7.5 kW). Motor transmits motion to the pumping unit via a belt drive to ensure reliable power transmission.

Hyperfilter purification system
The Hyperfilter is a dual-cartridge purification system positioned after the final compressor separator and before the pressure-holding valve. Cartridge 1: molecular sieve for moisture removal. Cartridge 2: molecular sieve + activated carbon to remove oil vapours and contaminants. Designed to meet breathing-air treatment requirements (use original cartridges). Filtering capacity: 3,050 m³ (inlet air 20°C @ 200 bar).

Electrical cabinet and controls

• ON/OFF switch with motor protection
• Electromechanical and electronic pressure switches for automatic stop at final pressure
• Automatic drainage of separators between stages and final separator during operation
• Timer for automatic condensate drain device
• Integrated no-load startup (automatic discharge at each shutdown)
• Condensate collection tank 5 L (≈3 L usable) with silencer
• Interstage pressure gauges to monitor pressures and assist valve-tightness checks

Frame and maintenance
Open frame for easy access and transport; tilting motor carrier plate maintains constant V-belt tension. Thermo-formed protective casing channels cooling air over cylinders and interstage piping to optimise compression efficiency. Control console includes interstage gauges, internal temperature indicator, phase-sequence and oil-level alarms, run/stop and manual condensate drain controls. Frame: steel with scratch-resistant powder coating RAL 9005 black.

Standard equipment

• 2 cylinder connections: choice of DIN 232, DIN 300 or INT/YOKE 232 bar
• 2 filling hoses (1.2 m)
• Pressure holding valve and interstage control manometers
• Dual PED-certified Hyperfilter system
• Automatic condensate drain with conveying system to canister
• Automatic rotation direction control; electronic pressure switch and oil-level protection with automatic shutdown
• Oil pump with filter and pressure gauge
• Carrying handles; frame colour Black RAL 9005

Compatible accessories (examples)

• C-monitor
• Single or double pressure remote charging panels
• Remote refill panels with lever taps
• ColTrimix and cylinder adapters (DRV DIN 232 / 300 / INT/YOKE)
• Fill hoses (various lengths, 7/16")

Technical specifications

• Model: Ergo TPS
• Brand: Coltri Compressors
• Product line: Prime Line
• Pumping unit: 3-stage high-pressure aluminium monoblock
• Motor: single-phase or three-phase, approx. 5.5–7.5 kW
• Suction filter: 10 µm
• Piping and fittings: AISI 316 stainless steel
• Hyperfilter: dual-cartridge (molecular sieve + activated carbon); capacity 3,050 m³ @ 20°C & 200 bar
• Condensate: intermediate separator after 2nd stage; double-acting final separators; condensate tank 5 L (≈3 L usable)
• Safety: safety valves after each stage; electronic pressure switch and oil-level protection with automatic shutdown
• Construction: die-cast aluminium cylinders with Nicasil coating; forged aluminium connecting rods; forged steel crankshaft; hardened steel 3rd stage with 5 cast-iron segments
• Finish: open steel frame, powder-coated RAL 9005 black
• Standard accessories: 2 filling hoses (1.2 m), cylinder connection options, oil pump with filter and gauge
