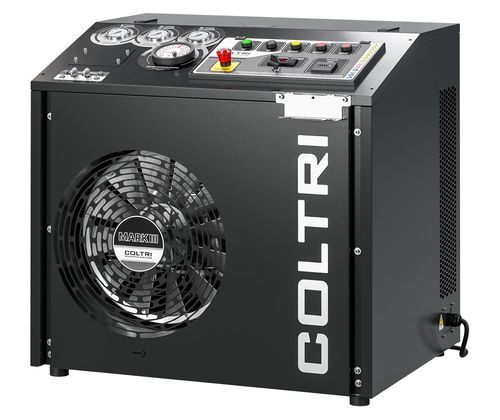

Piston compressor Mark III Silent

breathing airelectrically-poweredstationary

Designed with control systems that allow effective monitoring of operations: interstage pressure, oil level, cabin internal temperature and direction of rotation detector. Monobloc in aluminum, Gooseneck in forged steel Splash lubrication Forged aluminum connecting rods Main roller bearings Roller connecting rod bearings 1st and 2nd stage cylinders in aluminum with hard nicasil coating 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating 3rd stage cylinder in special treated steel. Stainless steel intake and exhaust valves Interstage cooling pipes in stainless steel Separator after the 2nd and 3rd stage Safety valves after each stage Maxifilter filter system Oil level sensor One of the fundamental parts of the compressor: the motor transfers the motion to the pumping unit through the belt. On this model is available the single-phase or three-phase electric motor from 4 to 5, 5 kW. The Maxifilter purification system enables reliable treatment of the breathing air according to DIN EN 12021¹ when using original filter cartridges. Placed after the last compressor separator and before the pressure maintenance valve, it has the separator after the 2nd and 3rd stage to create a first, fundamental barrier against humidity. The filtering capacity with inlet air at 20 ° C and 200 bar is 620m³. ON / OFF switch with motor protection switch. Electromechanical pressure switch that stops the compressor at the final pressure. Drainage of all separators between the individual stages and also of the final separator during compressor operation. Timer for automatic condensate drain.
