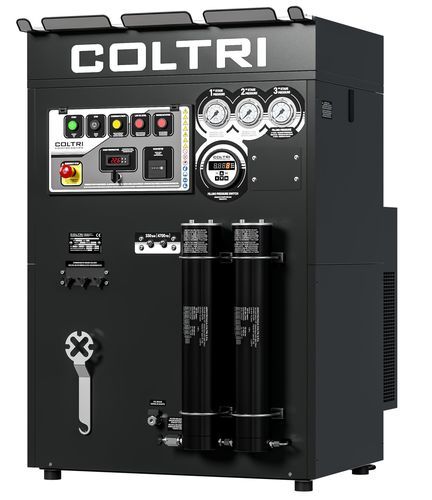

Piston compressor Super Silent TPS

breathing airelectrically-poweredstationary

Specially designed to minimize noise. It features an enhanced cooling and sound insulation system and an efficient filtering system with two Hyperfilters. Powered by an electric motor, it is equipped with four different pumping units, all in the TPS (Tropical Plus Superdry) version, and with an intuitive control panel. For longer filter life, the Tornado high pressure dryer is recommended. Monobloc in aluminum, Gooseneck in forged steel Forced lubrication on 2nd and 3rd stage cylinders by gear pump Oversized interstage cooling pipes Forged aluminum connecting rods Main roller bearings Roller connecting rod bearings 1st and 2nd stage cylinders in aluminum with hard nicasil coating 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating 3rd stage cylinder in special treated steel. Stainless steel intake and exhaust valves Interstage cooling pipes in stainless steel Separator after the 2nd and 3rd stage Safety valves after each stage Prepared for Hyperfilter filter system Oil filtration Double final separator Placed after the last compressor separator and before the pressure holding valve, the Hyperfilter purification system enables reliable treatment of the breathing air according to DIN EN 12021¹ when using original filter cartridges. The separator present between the 2nd and 3rd stage of the purification circuit allows to extract the greatest possible humidity. The filtering capacity with inlet air at 20 ° C and 200 bar is 4300 m³. ON / OFF switch with motor protection switch. Digital electronic pressure switch that stops the compressor at the final pressure.
