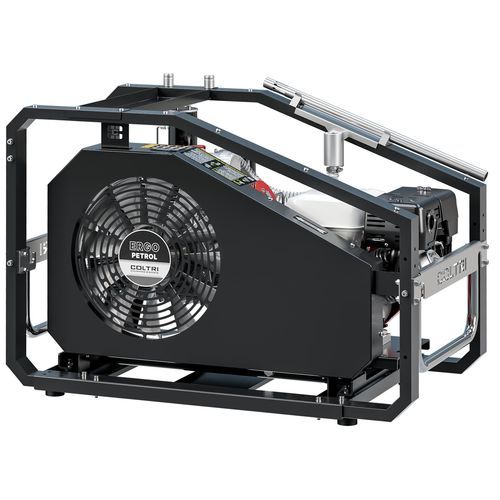

Piston compressor Ergo Petrol

breathing airdiesel engineportable

Practical to transport, ERGO stands out for its sturdiness and great operational efficiency. It can be powered by Honda petrol or Kohler diesel engines. Equipped with monitoring panel complete with interstage pressure gauges, hitchhiking with adjustable pressure switch, automatic condensate drain and direction of rotation control. Open frame designed to facilitate maintenance operations and portability. The tilting motor-holder plate ensures constant V-belt tension. The protective casing in thermo-formed material conveys the cooling air on the cylinders and on the inter-stage pipes, guaranteeing a high compression efficiency. The control console equipped with inter-stage pressure gauges, the internal temperature indicator, the alarm presence and incorrect phase sequence, the oil lack alarm and the start stop and manual condensate drain commands allow easy management and maintenance of the compressor . Standard equipment 2 filling connections to choose from DIN 232, DIN 300 or INT / YOKE 232 bar 2 filling hose 1.2m long Pressure maintenance valve Maxifilter filter system Oil level control with automatic shutdown Frame color Blue RAL 5002
