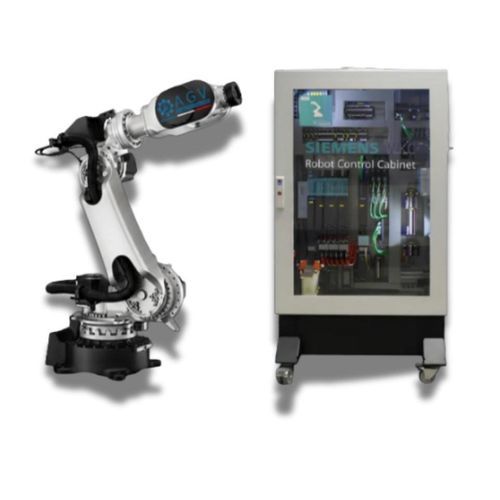

Articulated robot ONE 6CONTROL NJ120-2.05

6-axismachiningtapping

Presentation
The ONE 6CONTROL NJ120-2.05 is a 6-axis CNC industrial robot designed for machining, assembly and additive manufacturing. It provides machine-tool-level stiffness and trajectory control with elimination of mechanical backlash over lifetime and secondary encoders on all axes.

Positioning and concept
By applying machine-tool structural principles to a 6-axis robotic kinematic, the ONE 6CONTROL NJ120-2.05 delivers repeatable pose and trajectory accuracy suited to demanding production processes. The platform supports full trajectory control and integration with industrial controllers.

Tasks and materials

• Precision machining (milling, drilling, tapping) on aluminium and composite parts
• High-precision assembly and joining operations
• 3D printing and additive deposition for metals and composites
• Flexible use in multi-task cells: machining, additive, inspection, assembly

Key technology and components

• Secondary (output-side) ultra-resolution encoders on all 6 axes for improved trajectory accuracy
• Mechanical design and components engineered to eliminate backlash during service life
• SIEMENS ONE CNC control

Function
Suitable for precision machining as well as assembly, packaging, dosing, cutting (plasma/laser), spot welding, laser welding, deburring and riveting.

Features / technical specifications

• Type: articulated robot
• Configuration: 6 axes (with option for additional axes)
• Control: SIEMENS ONE CNC
• Measurement: secondary high-resolution encoders on all axes; optional second measurement system for increased stiffness
• Machine-tool-level stiffness and trajectory control
• Elimination of mechanical backlash over lifetime
• Cabinet dimensions: 1400 x 1088 x 500 mm
