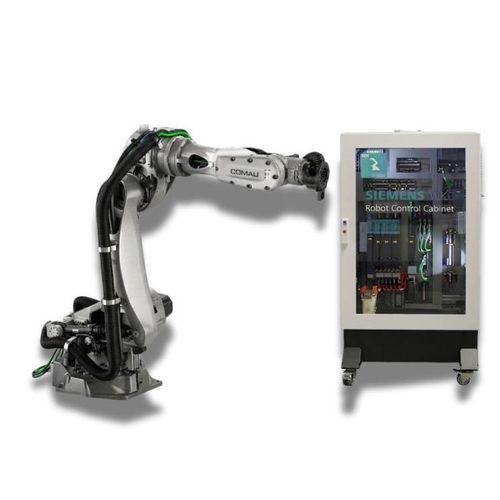

Articulated robot N220_2_7

6-axispalletizingdeburring

Overview
The N220_2_7 is an industrial articulated robot with a large payload capacity, engineered to meet the flexibility and cost-efficiency requirements of modern production lines. Its modular architecture and integration of compact next-generation motors reduce operating costs while ensuring long-term reliability.

Positioning and concept
By combining a lightweight mechanical structure with advanced motion algorithms, the N220_2_7 delivers optimal dynamics and trajectory repeatability. A patented nitrogen balancing system on axis 2 provides an extended rear work envelope, increasing agility in confined spaces.

Tasks and materials

• Spot welding and high-intensity assembly operations.
• Handling heavy loads, palletizing and machine unloading.
• Advanced continuous processes: large-format 3D printing, adhesive and sealant dispensing.
• Part finishing: deburring, polishing and foundry applications.

Features

• ARTICULATED CNC ROBOT
• 6 axes
• CNC SIEMENS ONE
• Mounting: floor or ceiling

Key technologies and components

• Patented nitrogen balancing system on axis 2 for improved rear agility.
• Integrated cabling and bundle management options (Safe Motion) to protect end-effectors.

Technical specifications (extracts)

• Wrist torque (max): 1,270 Nm on axes 4 and 5, and 780 Nm on axis 6 (enables handling of heavy tooling).
• Control cabinet dimensions: 1400 x 1088 x 500 mm.

Characteristics / technical specifications

• Type: articulated CNC robot
• Number of axes: 6
• Numerical control: CNC SIEMENS ONE
• Mounting: floor or ceiling
• Balancing system: patented nitrogen system on axis 2
• Cabling protection: integrated cabling, bundle management (Safe Motion)
• Max wrist torques: 1,270 Nm (axes 4 and 5), 780 Nm (axis 6)
• Control cabinet dimensions: 1400 x 1088 x 500 mm
