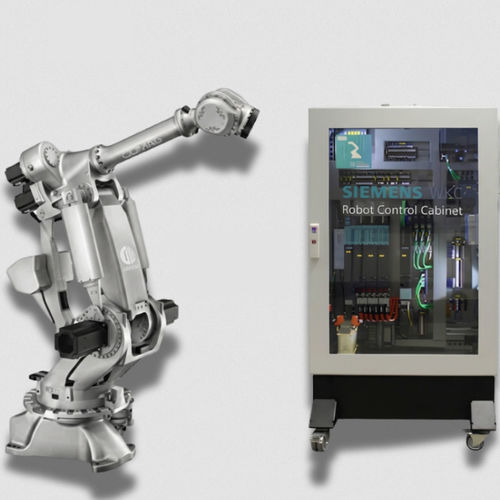

Articulated robot NJ500_2_7

6-axispalletizingmachining

Overview
The ONE 6CONTROL NJ500_2_7 is designed for the most demanding automation scenarios that require handling very heavy loads while maintaining operational flexibility. With a maximum payload of 500 kg, it provides a dedicated solution for high-productivity industrial environments.

Positioning and concept
Placed in the very-high payload segment, this 6-axis articulated robot pairs exceptional mechanical strength with controlled energy consumption. Its ultra-rigid structure is engineered to absorb major dynamic forces, reducing operating costs and ensuring consistent reliability during heavy-duty operations.

Tasks and materials

• Heavy handling and transfer of large components during processing.
• Precision machining and trimming of large metal or composite structures.
• High-capacity spot welding with large welding fixtures.
• High-throughput end-of-line operations: industrial packing and heavy palletizing.
• Automated cutting processes (laser, plasma) and 3D measurement inspection.
• Deburring and finishing of heavy cast parts.

Features

• ARTICULATED CNC ROBOT
• 6 axes
• CN SIEMENS ONE
• Mounting options: floor-mounted or ceiling-mounted

Key technologies and components

• Reinforced mechanical base of 2.4 tonnes providing stability to counter lever effects and eliminate vibrations during machining or measurement.
• High-performance mechanical wrist delivering exceptional torque of 2550 Nm on bending axes, protected by dual IP65/IP67 sealing certification.

Cabinet dimensions
1400 x 1088 x 500

Technical specifications

• Payload: up to 500 kg.
• Architecture: 6-axis articulated robot.
• Numeric control: CN SIEMENS ONE.
• Reinforced mechanical base mass: 2.4 tonnes (for machining stability).
• Wrist torque (bending axes): 2550 Nm.
• Wrist protection rating: IP65 / IP67 (dual certification).
• Mounting options: floor or ceiling.
• Cabinet dimensions: 1400 x 1088 x 500.
