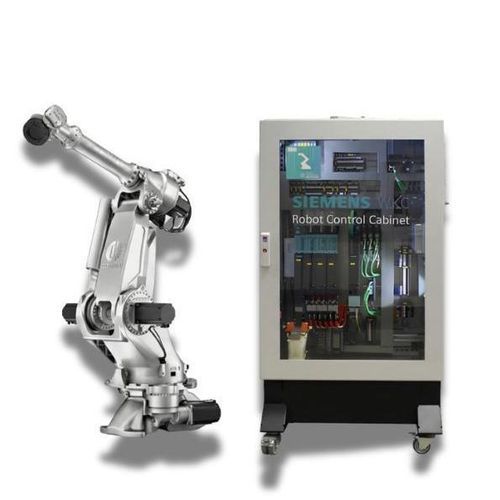

Articulated robot NJ370_2_7

6-axispalletizingmachining

Presentation
The ONE 6CONTROL NJ370_2_7 is the heavyweight of the range, engineered to meet the most extreme industrial challenges where raw payload capacity must be paired with precise trajectory control. With a payload capability of up to 370 kg, this high-end articulated robot delivers maximum productivity for automated installations.

Positioning and concept
A reference in the "Ultra Heavy-Duty" category, this 6-axis robot combines exceptional mechanical strength with notable energy efficiency for its class. Its reinforced architecture absorbs high dynamic loads, ensuring controlled operating costs and long service life on production lines.

Tasks and materials

• Heavy, high-precision machining and trimming of large parts in metals or composites.
• Intensive spot welding and handling of large welding end-effectors.
• End-of-line operations: heavy packaging, palletizing and handling of massive blocks.
• Advanced thermal and industrial processes: laser cutting, plasma cutting and regulated dosing.
• Severe foundry applications and finishing operations such as deburring.

Characteristics

• ARTICULATED CNC ROBOT
• 6 axes
• CN SIEMENS ONE
• Mounting: floor, ceiling mountable

Key technologies and components

• Oversized wrist unit delivering very high torques (over 2100 Nm on axes 4 and 5) for deflection-free handling of very heavy tools.
• Sealed design certified IP65/IP67, providing full protection against abrasive dust and industrial fluid ingress.

Cabinet dimensions
1400 x 1088 x 500

Characteristics / technical specifications

• Model: NJ370_2_7
• Payload capacity: up to 370 kg
• Number of axes: 6
• Robot type: articulated CNC robot
• Controller: CN SIEMENS ONE
• Axis torques (axes 4 and 5): greater than 2100 Nm
• Protection rating: IP65 / IP67
• Mounting options: floor or ceiling
• Cabinet dimensions: 1400 x 1088 x 500
