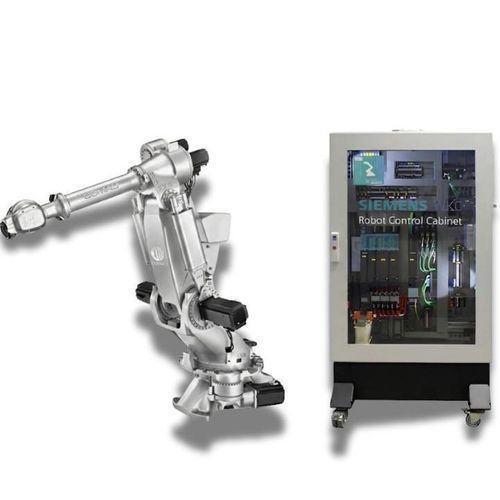

Articulated robot NJ650_2_7

6-axispalletizingmachining

Presentation
The NJ650_2_7 is the largest model in the range, engineered to drive the heaviest and most demanding automation applications in industry. With a rated payload of 650 kg, this articulated CNC robot delivers the lifting capacity required for large-scale production while enabling optimized throughput.

Positioning and concept
Designed for extreme heavy-duty operations, this 6-axis robot combines exceptional lifting capacity with rigorous control of operating costs and energy. Its reinforced kinematics and chassis are built to absorb major dynamic loads, ensuring stable performance and industrial-grade reliability.

Tasks and materials

• Handling of heavy loads and transfer of large parts or blocks.
• Heavy spot welding with management of large welding fixtures.
• Heavy-duty high-precision machining and trimming of large metal or composite structures.
• High-capacity end-of-line processes: industrial packaging and palletizing.
• Automated thermal cutting and precision dosing: plasma cutting and controlled material deposition.
• Finishing and deburring of large cast parts.

Characteristics

• ARTICULATED CNC ROBOT
• 6 axes
• CN SIEMENS ONE
• Floor-mounted, suitable for ceiling installation

Key technologies and components

• Mechanical anchoring structure weighing nearly 2.5 tonnes, offering maximum inertia and rigidity to counter leverage effects when handling full loads.
• Ultra-robust wrist delivering very high torques (3060 Nm on axes 4 and 5), equipped with targeted IP65 sealing to operate effectively in presence of projections.

Technological specifications

• Rated payload: 650 kg
• Number of axes: 6
• CNC control: SIEMENS ONE
• Mounting options: floor or ceiling
• Wrist: torques axes 4 and 5 = 3060 Nm, sealing IP65
• Anchoring structure: mass/inertia approx. 2.5 tonnes
• Cabinet dimensions: 1400 x 1088 x 500

Model / technical specifications

• Model: NJ650_2_7
• Type: articulated CNC robot
• Payload: 650 kg
• Axes: 6
• Control: CN SIEMENS ONE
• Wrist: high torque (3060 Nm on axes 4 and 5), IP65
• Anchoring structure: ≈ 2.5 tonnes (reinforced inertia and rigidity)
• Mounting: floor or ceiling
• Cabinet dimensions: 1400 x 1088 x 500
