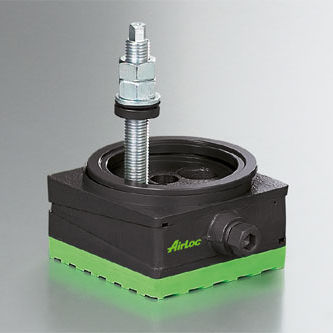

Machine foot 203-VRKC serieselastomerfixedanchorable
Add to favorites
Compare this product
Characteristics
- Applications
- machine
- Material
- elastomer
- Other characteristics
- fixed, anchorable
- Load capacity
Min.: 3,569 kg
(7,868.3 lb)Max.: 6,118 kg
(13,487.9 lb)- Diameter
140 mm
(6 in)
Description
Bolt-on AirLoc Wedgmount® Precision Levelers with spherical seat and with the Compact system, the spring tensioning of top and bottom part. The Wedgmount® Precision Leveler is bolted permanently onto the machine, but it can move freely on the ground and is set up with vibration isolation. For machine supports that are not machined or for uneven ground, the spherical seat version guarantees a fixed connection to a slope of up to 3°.
Catalogs
No catalogs are available for this product.
See all of AirLoc AG‘s catalogsOther AirLoc AG products
AirLoc Wedgmount® Precision Levelers VRKC - bolt-on, spherical seat
