Characteristics

  • Applications:

    machine

  • Material:

    elastomer

  • Type:

    anti-vibration, adjustable

  • Load capacity:

    Min.: 2,294 kg (5,057 lb)

    Max.: 7,138 kg (15,737 lb)

  • Diameter:

    Min.: 129 mm (5 in)

    Max.: 239 mm (9 in)

Description

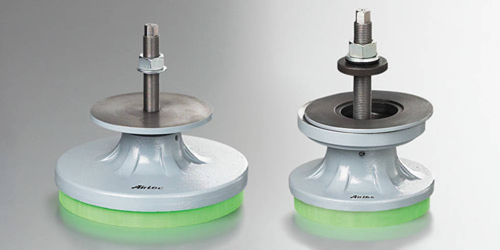

PRS Jacmount® Adjustable Levelers are a new development from AirLoc, especially for machines with high dynamic horizontal force. The robustly designed base plate is permanently connected to a pressure plate by means of precision guide. This design principle enables the greatest possible horizontal rigidity over the entire levelling range. When using the high damping AirLoc isolation pads, the machine remains stable even when there are great disturbing forces. PRSK Jacmount® Adjustable Levelers with spherical seat top parts are ideal for compensating ground unevenness of up to 3°.
