Pinch valve
manualcontrolisolation

pinch valve
pinch valve
pinch valve
pinch valve
pinch valve
Add to favorites
Compare this product


Characteristics

Type
pinch
Operation
manual
Function
control, isolation
Media
for slurry
Applications
for granulates, for powders, for abrasive products
Pressure

Min.: 3 bar (43.5 psi)

Max.: 40 bar (580.2 psi)

DN

Min.: 15 mm (0.591 in)

Max.: 1,200 mm (47.244 in)

Description

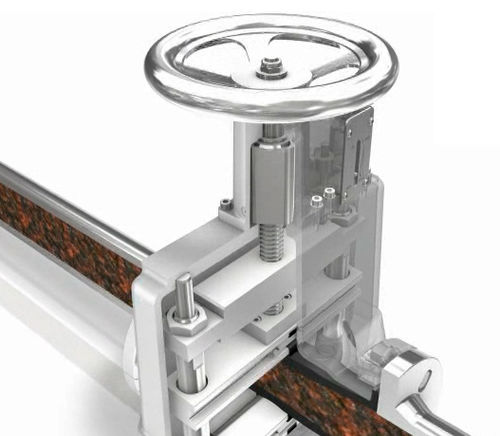

The sleeve of the manual and control Pinch Valve is controlled by a mechanism inside the casing and an actuator of your choice. The mechanism comprises one or two pinch bars arranged horizontally above and below the sleeve, and is guided at the side by two rods. Manual and control Pinch Valves can be provided with various actuators. The actuator causes the pinch bar(s) to pinch the sleeve horizontally (centrally, depending on the nominal size). This provides an effective seal on the flow of product. In addition, a direct connection between the sleeve and the pinch bar(s) ensures an optimum opening of the sleeve to provide the full passage. The maximum operating pressure of the manual and control Pinch Valve is dependent on the type and nominal size, and is between 3 and 40 Bar. The most important advantages include the free flow of the product, minimum frictional resistance and low maintenance and operating costs. A further advantage is the reduction of the parts in contact with the medium, the sleeve being the only component in contact with the product flow. In addition, deformation of the sleeve during the closing process causes any incrustations inside the sleeve to break away. This means that the manual and control Pinch Valve is a practically blockage-free valve solution. Furthermore, even larger solid particles are shut off by the sleeve, which is particularly resistant to abrasion and corrosion, hence shut off without leaks.
