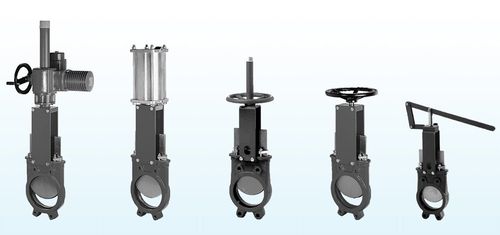

Knife gate valve A
leverelectricpneumatic

knife gate valve
knife gate valve
knife gate valve
knife gate valve
knife gate valve
knife gate valve
knife gate valve
knife gate valve
Add to favorites
Compare this product


Characteristics

Type
knife gate
Operation
lever, electric, pneumatic
Media
for liquid food products and beverages, for chemical products
Body
with flange, wafer, stainless steel, cast iron
Applications
chemical, industrial, for the gas industry
Associated function
sewage
Other characteristics
standard, ANSI, unidirectional, solids
Pressure

2 bar, 4 bar, 5 bar, 6 bar, 10 bar (29 psi)

DN

Min.: 50 mm (1.969 in)

Max.: 1,200 mm (47.244 in)

Description

The Knife Gate Valve is a uni-directional wafer valve for general industrial application.It is predominantly used in the paper and pulp chemical industries mining industries power station technology industry food industry biogas plants sewage treatment plants sugar industry steel industry and animal feed sectors The nominal widths available range from DN50 to DN1200 with flange connections complying with EN 1092 PN10 or alternatively, ANSI B16.5 (class 150). The structure of the unidirectional Knife Gate Valves encompasses a so-called wafer style cast monoblock body, with raised face and reinforced ribs for larger nominal diameters for extra body strength. The monoblock body is available in either grey cast iron (GG25) or alternatively in stainless steel AISI 1.4408 (CF8M). The slide plate is manufactured using stainless steel AISI 304 or AISI 316 as standard. The plate radius of the slide gate has a bevelled cutting edge. As a result, solids can be cut through, achieving a tight seal in the closed position. On request, the thickness of the Knife Gate Valves plate can be increased for higher operating pressures and/or higher quality material can be used.
