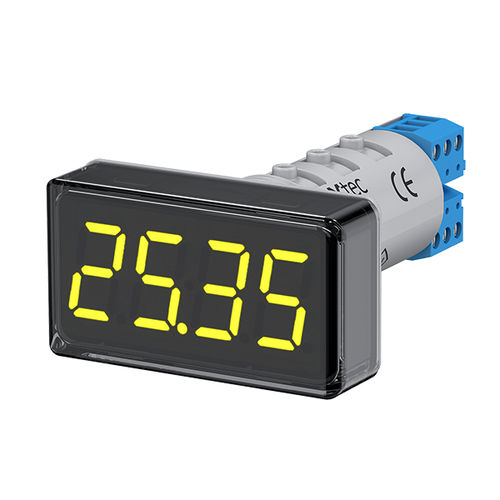

Process indicator ITP17

universal4-digit

Functionality of ITP17: - 4-digit three-color indicator. - Universal input: Supports direct connection of resistance thermometers, thermocouples, pressure sensors, humidity sensors, level sensors, etc. (For more details on the characteristics of measurement sensors, refer to the sensor specifications.) - Three-color indication: Configurable according to required thresholds. - Operating modes: Continuous indication of the measured parameter in red, yellow, or green, similar to the ITP14 and ITP16. - Alarm indication: Triggered by signal interruption or when measurements exceed specified limits. - Output device: For signaling or control with 200 mA and 42 V. - Power supply: From an external DC voltage source of 10...30 V. Design features: - Mounts into a 22 mm hole. - Removable screw terminals. - Operating temperature range: -40 to +60 °C. - Enclosure protection rating: IP65 from the front panel. Display operation The visual notification of the measured value status in ITP-17 is accompanied by an automatic color change. Let's consider an example of setting up color signaling of the heating process. Four events are defined: normal, underheating, overheating and emergency overheating. Each event has its own indicator color.
