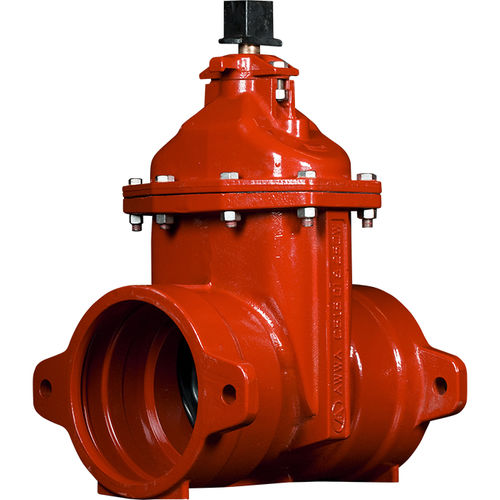

Wedge gate valve 2500 series
flow-controlfor waterfor water systems

wedge gate valve
wedge gate valve
wedge gate valve
Add to favorites
Compare this product


Characteristics

Type
wedge gate
Function
flow-control
Media
for water
Applications
for water systems
Associated function
backflow, sewage, fire protection
Other characteristics
compact
DN

Max.: 12 in

Min.: 4 in

Pressure

250 psi

Description

The AMERICAN Series 2500 Ductile Iron 250 psig AWWA Resilient Wedge Gate Valve is designed for use in drinking water, sewage and fire protection systems as well as irrigation and backflow control systems. The Series 2500 Resilient Wedge Gate Valve is furnished in configurations that are UL Listed and FM Approved. Triple O-ring Stem Seals Sealing the lubrication chamber is a series of three O-ring stem seals. The O-rings help to isolate the lubrication chamber. Thrust Washers Two thrust washers are used. One is located above and one is located below the thrust collar. These thrust washers provide easy operation. Ductile Iron Construction The ductile iron body, bonnet and wedge provide strength and a pressure rating that meets or exceeds the requirements of AWWA C515. The tensile strength of ductile iron is more than twice that of cast iron. This added strength makes the Series 2500 more durable and rated at 250 psig. This strength and higher pressure rating is provided in a compact, lightweight and easy-to-handle ductile iron valve.
