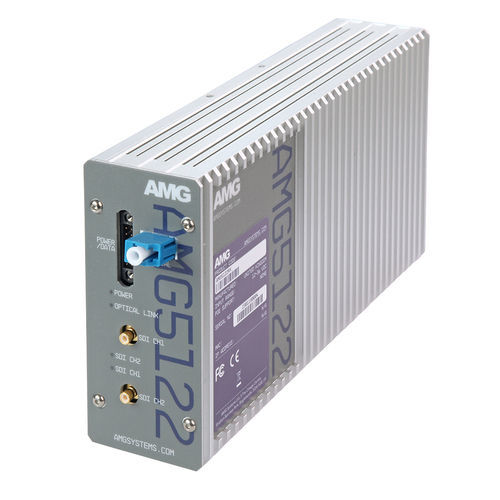

Video converter AMG5122RX

signaloptical fiberRS422

Industrial 2 Channel SDI/HD-SDI/3G-SDI Video Rx, 1 x Duplex RS422 Serial Data, Singlemode 40Km, 1 Fiber, CWDM, LC Connector, DIN Rail / Wall Mount, -40°C to +75°C, 10-30VDC Power Input Features -40°C to +75°C temperature maintains performance in extreme conditions Plug & Play – no need for any user configuration Dual SD/HD/3G-SDI video channels 3 open collector alarm outputs for system status Integrated CWDM module provides full system operation over a single optical fiber core Supports distances up to 40Km Automatic cable equalization to ensure signal integrity Designed in the USA & UK. Manufactured in the United Kingdom AMG Lifetime Support Warranty The AMG5122 high definition fiber video converter is an ideal solution for the transmission of broadcast or surveillance applications. It supports 2 channels of SD, HD or 3G-SDI video, supporting image transmission of SDTV (143-540Mbps) or HDTV (1.485Gbps & 3Gbps, 1080P60). The units provide full equalizing and re-clocking of the SDI video in order to reconstruct the signal for consistent quality. Electronic and optical adjustments are never required. An RS422 serial data channel is supported along with 3 open collector alarm outputs that provide indication of the status of the unit. The integrated fully enclosed CWDM module provides transmission of all signals over a single optical fiber core for distances up to 40Km. PSUs need to be ordered separately.
