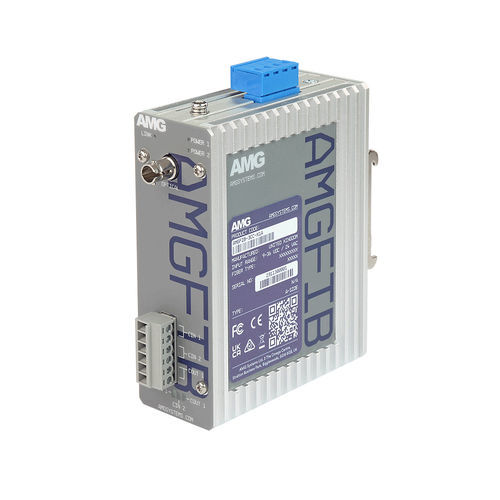

Digital converter AMGFIB-3CC-S1A

DIN railsingle-modecompact

2 x Contact Closure In A To B Direction, 1 x Contact Closure In B To A Direction, Singlemode 20Km, 1 Fiber, 1310nm, A-Side, ST Connector, DIN Rail / Wall Mount, -40°C to +75°C, 9-36VDC or 24VAC Power Input Features -40°C to +75°C temperature maintains performance in extreme conditions Plug & Play – no need for any user configuration Dual redundant power inputs with DC & AC support LED indicators provide for easy status of operation 3 contact closure channels provided Designed in the USA & UK. Manufactured in the United Kingdom AMG Lifetime Support Warranty Designed in a compact DIN rail or wall mount housing, the AMGFIB series provide digital transmission of three contact closure channels for remote input detection and relay control. The three contact closure channels support two channels in the forward direction (A to B) and one channel in the reverse direction (B to A). Fitted with dual redundant power inputs supporting both DC and AC low voltage inputs ensures maximum operating reliability and the highest levels of performance. A wide range of models are available to suit all design requirements. PSUs need to be ordered separately.
