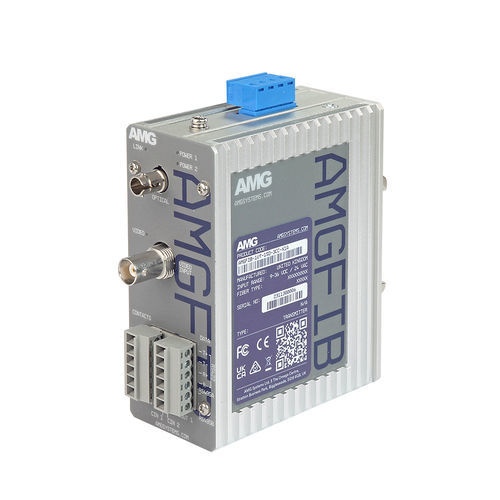

Digital converter AMGFIB-1VT-1SD-3CC-M1A

videoRS-485RS422

Industrial 1 Channel CVI/TVI/AHD/CVBS Video Tx, 1 x Duplex RS422/485 Serial Data, 2 x Contact Closure In Video Direction, 1 x Contact Closure In Return Direction, Multimode 2Km, 1 Fiber, 1310nm, A-Side, ST Connector, DIN Rail / Wall Mount, -40°C to +75°C, 9-36VDC or 24VAC Power Input Features -40°C to +75°C temperature maintains performance in extreme conditions Plug & Play – no need for any user configuration Supports all the latest SD & HD video formats including CVI, TVI, AHD & CVBS composite SD, HD, 2MP, 3MP, 4MP & 5MP cameras supported 3 contact closure channels provided Designed in the USA & UK. Manufactured in the United Kingdom AMG Lifetime Support Warranty Designed in a compact DIN rail or wall mount housing, the AMGFIB series provide digital uncompressed transmission of the latest standard definition and high definition camera signals coupled with one serial data and three contact closure channels for remote input detection and relay control. The units support all modern SD & HD video formats including CVBS (PAL, NTSC, SECAM), CVI, TVI & AHD and camera resolutions up to 1960p with SD, HD, 2 megapixel, 3 megapixel, 4 megapixel and 5 megapixel camera types supported from all major brands. The serial data channel supports one RS422 or RS485 data channel in 2-wire and 4-wire mode in both directions. The three contact closure channels support two channels in the video direction (A to B) and one channel in the reverse direction (B to A). Fitted with dual redundant power inputs supporting both DC and AC low voltage inputs ensures maximum operating reliability and the highest levels of performance.
