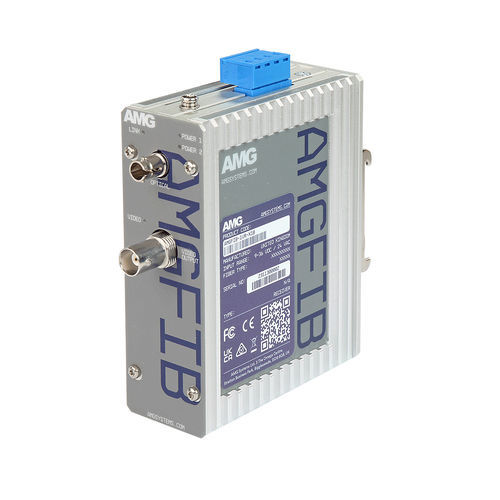

Digital converter AMGFIB-1VR-S1B

videoCVBSDIN rail

Industrial 1 Channel CVI/TVI/AHD/CVBS Video Rx, Singlemode 20Km, 1 Fiber, B-Side, ST Connector, DIN Rail / Wall Mount, -40°C to +75°C, 9-36VDC or 24VAC Power Input Features -40°C to +75°C temperature maintains performance in extreme conditions Plug & Play – no need for any user configuration Dual redundant power inputs with DC & AC support Supports all the latest SD & HD video formats including CVI, TVI, AHD & CVBS composite SD, HD, 2MP, 3MP, 4MP & 5MP cameras supported LED indicators provide for easy status of operation Designed in the USA & UK. Manufactured in the United Kingdom AMG Lifetime Support Warranty Designed in a compact DIN rail or wall mount housing, the AMGFIB series provide digital uncompressed transmission of the latest standard definition and high definition camera signals. The units support all modern SD & HD video formats including CVBS (PAL, NTSC, SECAM), CVI, TVI & AHD and camera resolutions up to 1960p with SD, HD, 2 megapixel, 3 megapixel, 4 megapixel and 5 megapixel camera types supported from all major brands. Fitted with dual redundant power inputs supporting both DC and AC low voltage inputs ensures maximum operating reliability and the highest levels of performance. PSUs need to be ordered separately.
