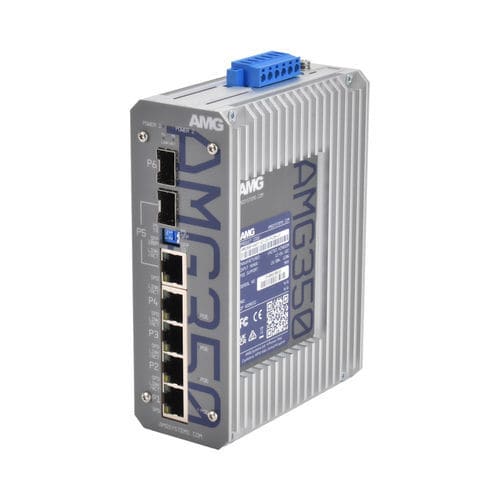

Unmanaged ethernet switch AMG350-4GAT-1C-1S-P120-LV

6 portsDIN railwall

Industrial 6 Port Unmanaged PoE Switch 4 x 10/100/1000Base-T(x) RJ45 Ports with 802.3at 30W PoE, 1 x 10/100/1000Base-T(x) RJ45 or 100/1000Base-Fx SFP Combo Port, 1 x 100/1000Base-Fx SFP Port, DIN Rail / Wall Mount, -40°C to +75°C, 12-48VDC Power Input With Voltage Booster Features -40°C to +75°C temperature maintains performance in extreme conditions Plug & Play – no need for any user configuration Auto-Negotiation (802.3u) – automatically determines the best connection speed Designed in the USA & UK. Manufactured in the United Kingdom AMG Lifetime Support Warranty Designed in a compact DIN rail or wall mount housing, the AMG350 series unmanaged Ethernet switches are ideally suited for connecting edge devices to Ethernet networks where more complex management functions are not required. Long distance connections are supported using all types of fiber through the integrated SFP port(s). Fiber connectivity is determined by separate SFP device selection, providing application and site flexibility. Available in both non-PoE models as well as PoE models for IEEE802.3at 30W or IEEE802.3bt 60/90W they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range. Fitted with dual redundant power inputs and power failure alarm relay ensures maximum operating reliability and the highest levels of performance. A wide range of models are available in the AMG350 product range to suit all unmanaged switch design requirements. The LV models feature a 12-56VDC booster circuit with a regulated 54VDC output to supply PoE from a low voltage power input. SFPs and PSUs need to be ordered separately.
