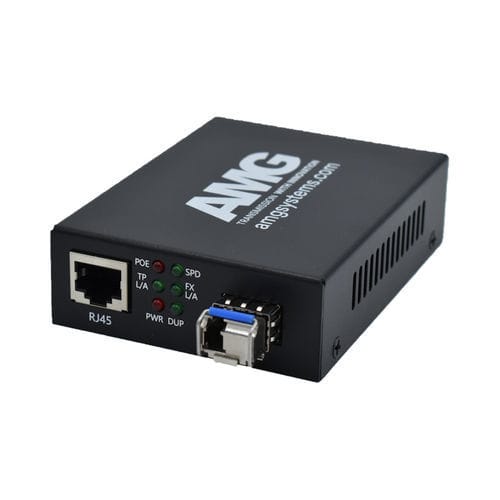

Media converter AMG210M-1GAT-1SM1A-P30

Ethernet mediagigabit Ethernetcompact

Commercial PoE Media Converter, 1 x 10/100/1000Base-T(x) RJ45 Port with 802.3at 30W PoE, 1 x 1000Base-Fx Port, Multimode, 1 Fibre, 1310nm, A-Side, LC Connector, Multirate Support, Mini, 0⁰C to +50⁰C, EU, US or UK Type Power Supply Included Features Auto-Negotiation – automatically determines the best connection speed IEEE 802.3at 30W PoE+ supported on each port Supports Jumbo Frames up to 9.6K bytes AMG 3 Year Support Warranty AMG’s 210M PoE series mini Ethernet media converters provide flexible options for 100Mbps and Gigabit Ethernet communication across fibre via the SFP port with intelligent configuration features such as link fault pass-through and supporting 30W PoE per port. Designed in an ultra compact housing, these mini media converters are ideally suited for connecting equipment to Ethernet networks over long distances using all types of fibre through the integrated SFP port. User selectable DIP switches allow for configuration of advanced features such as link fault pass-through, automatic laser shutdown, SFP reset and SFP speed selection. Industry standard IEEE 802.3at 30W PoE+ is supported on each RJ45 port for powering remote devices. The mini media coverters can be used standalone or wall mounted using the integrated wall mounting holes. PSUs are included with each unit and SFPs can either be included (depending on model ordered) or can be ordered separately allowing for selection from AMG’s extensive range of SFP modules to suit any application.
