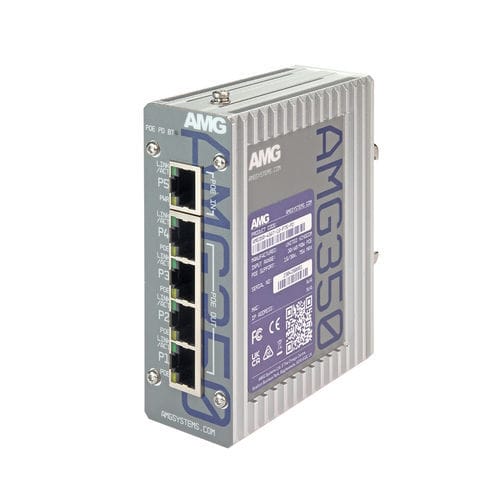

Unmanaged ethernet switch AMG350-4GAT-1G-P75-PD

5 portsDIN railwall

Innovative thermally efficient housing ensures high levels of device reliability under full load -40°C to +75°C temperature maintains performance in extreme conditions Plug & Play – no need for any user configuration IEEE802.3at/bt 30/60/90W PoE PD power input Supports 15W and 30W PoE outputs (75W Max) Auto-Negotiation (802.3u) – automatically determines the best connection speed Designed in the USA & UK. Manufactured in the United Kingdom AMG Lifetime Support Warranty Designed in a compact DIN rail or wall mount housing, the AMG350 series unmanaged PoE powered Ethernet switches are ideally suited for connecting edge devices to Ethernet networks where more complex management functions are not required and where there is no local power available or installing local power would be cost prohibitive. The switch is powered by an IEEE802.3at or bt PoE PD input on port 5 and provides IEEE802.3af/at 15/30W outputs on ports 1-4 (max 75W) and is suitable for powering PoE devices over a wide industrial operating temperature range. The switch is compatible with any manufacturers IEEE802.3at or bt compliant PoE source device (PSE) and can act as a multi-port repeater for situations where distances above 100M (328ft) are required. A wide range of models are available in the AMG350 product range to suit all unmanaged switch design requirements.
