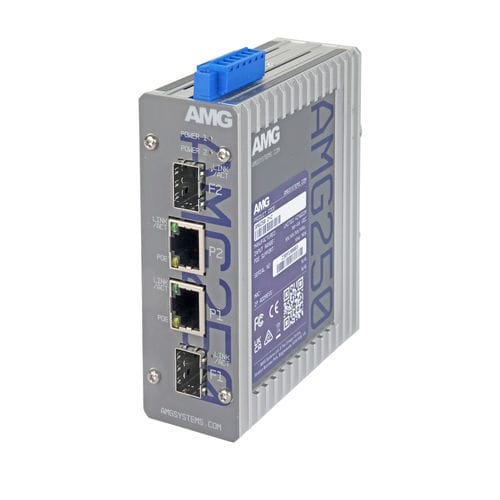

Media converter AMG250-2GBT-2S-P180

Ethernetgigabit EthernetDIN rail

Dual Channel Industrial Multirate PoE Media Converter 2 x 10/100/1000Base-T(x) RJ45 Ports with 802.3bt 60/90W PoE, 2 x 100/1000Base-Fx SFP Ports, DIN Rail / Wall Mount, -40°C to +75°C, 52-56VDC Power Input Features -40°C to +75°C temperature maintains performance in extreme conditions Plug & Play – no need for any user configuration Auto-Negotiation (802.3u) – automatically determines the best connection speed Supports 15W, 30W, 60W and 90W PoE Designed in the USA & UK. Manufactured in the United Kingdom AMG Lifetime Support Warranty AMG’s media converters provide a multirate 100Mb/Gigabit Ethernet uplink across fibre via the SFP port with optional 30W or 60/90W PoE. Available in both single and dual channel models along with a single channel model with dual RJ45 ports provides for maximum design flexibility. Designed in a compact DIN rail or wall mount housing, the AMG250 series media converters are ideally suited for connecting equipment to Ethernet networks over long distances using all types of fibre through the integrated SFP port(s). Fibre connectivity is determined by separate SFP device selection, providing application and site flexibility. Available in both non-PoE models as well as PoE models for IEEE802.3at 30W or IEEE802.3bt 60/90W they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range. Fitted with dual redundant power inputs and power failure alarm relay ensures maximum operating reliability and the highest levels of performance. A wide range of models are available to suit all design requirements. SFPs and PSUs need to be ordered separately.
