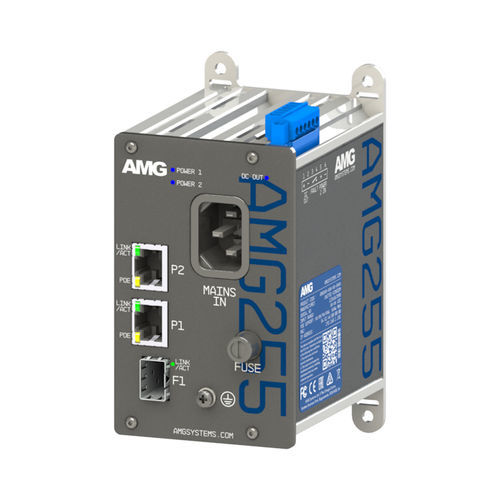

Media converter AMG255-2GAT-1S-P60

Ethernetgigabit EthernetDIN rail

2+1 Industrial Multirate PoE Media Converter 2 x 10/100/1000Base-T(x) RJ45 Ports with 802.3at 30W PoE, 1 x 100/1000Base-Fx SFP Port, DIN Rail / Wall Mount, -40°C to +70°C, Integrated 60W PSU, 85-264 VAC IEC Mains Power Input Features Plug & Play – no need for any user configuration Fault relay for dual power input failure notification Manufactured in the United Kingdom AMG’s media converters provide a multirate 100Mb/Gigabit Ethernet uplink across fibre via the SFP port with optional 30W PoE. Available with an integrated mains PSU in both single and dual channel models along with a single channel model with dual RJ45 ports provides for maximum flexibility. Designed in a compact DIN rail or wall mount housing, the AMG255 series mains powered media converters are ideally suited for connecting equipment to Ethernet networks over long distances using all types of fibre through the integrated SFP port(s). Fibre connectivity is determined by separate SFP device selection, providing application and site flexibility. Available in both non-PoE models as well as PoE models for IEEE802.3at 30W they are suitable for powering the latest PoE devices over a wide industrial operating temperature range. Fitted with an integrated fully industrial mains power supply along with a redundant DC power input and power failure alarm relay ensures maximum operating reliability and the highest levels of performance. The integrated mains power supply can also provide any remaining power as a standard DC voltage output to power 3rd party external devices. A wide range of models are available to suit all design requirements. SFPs need to be ordered separately.
