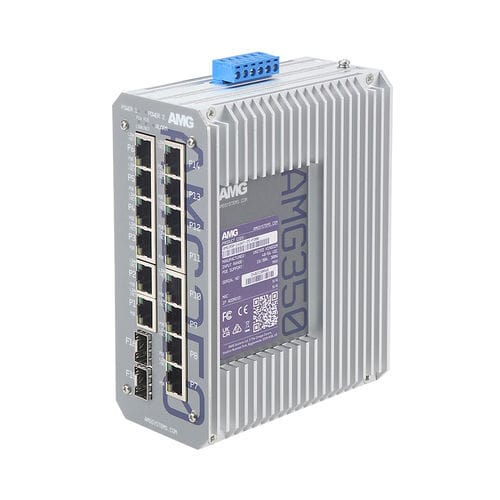

Unmanaged ethernet switch AMG350-14GAT-2S-P300

16 portsDIN railDIN rail

Industrial 16 Port Unmanaged PoE Switch 14 x 10/100/1000Base-T(x) RJ45 Ports with 802.3at 30W PoE (Max 300W), 2 x 1000Base-Fx SFP Ports, DIN Rail / Wall Mount, -40°C to +75°C, 48-56VDC Power Input Features Innovative thermally efficient housing ensures high levels of device reliability under full load -40°C to +75°C temperature maintains performance in extreme conditions Plug & Play – no need for any user configuration Supports 15W and 30W PoE Auto-Negotiation (802.3u) – automatically determines the best connection speed Designed in the USA & UK. Manufactured in the United Kingdom AMG Lifetime Support Warranty Designed in a thermally efficient DIN rail or wall mount housing, the AMG350 series unmanaged Ethernet switches are ideally suited for connecting edge devices to Ethernet networks where more complex management functions are not required. Long distance connections are supported using all types of fiber through the integrated SFP port(s). Fiber connectivity is determined by separate SFP device selection, providing application and site flexibility. Available as a PoE model for IEEE802.3at 30W that is suitable for powering PoE devices over a wide industrial operating temperature range. Fitted with dual redundant power inputs and power failure alarm relay ensures maximum operating reliability and the highest levels of performance. A wide range of models are available in the AMG350 unmanaged switch series to suit all design requirements. SFPs and PSUs need to be ordered separately.
