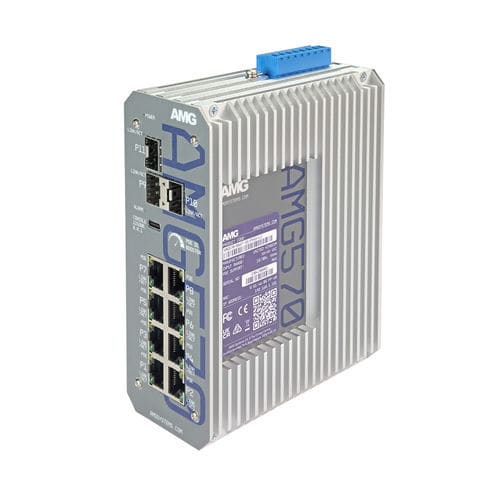

Managed ethernet switch AMG570-8GAT-3S-P240-LV

11 portsgigabit Ethernetlayer 3

Innovative thermally efficient housing ensures high levels of device reliability under full load -40°C to +75°C temperature maintains performance in extreme conditions Compliant with all IEEE 802.3 speeds (i/u/ab/z) Triple Speed SFP ports (100Mb, 1Gb, 2.5Gb) Supports RSTP, MSTP, ERPS, MRP, SNMP v1-3 and IGMP v1-3 IEEE 802.1x port security enabled Integrated low voltage DC-DC PoE booster Supports 10K bytes jumbo frames Supports 15W and 30W PoE Designed in the USA & UK. Manufactured in the United Kingdom AMG Lifetime Support Warranty AMG570 series layer 2+ managed industrial Ethernet switches are designed in a thermally efficient DIN rail or wall mount housing and have 8 Gigabit Ethernet RJ45 ports with an additional 3 multi-rate SFP ports that support 100Mb, 1Gb and 2.5Gb for high speed data uplink into core networks, providing application and site flexibility. Available as a non-PoE model as well as multiple PoE models for IEEE802.3at 30W and/or IEEE802.3bt 60/90W they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range. The LV models feature a fully isolated 9-36VDC or 20-60VDC booster circuit with a regulated 53VDC output to supply PoE from a low voltage power input. The AMG570 series support a wide range of management functions as well as Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), Media Redundancy Protocol (MRP) and Ethernet Ring Protection Switching (ERPS) for network redundancy. IGMP functionality is supported to handle the multicast traffic commonly used in IP CCTV deployments.
