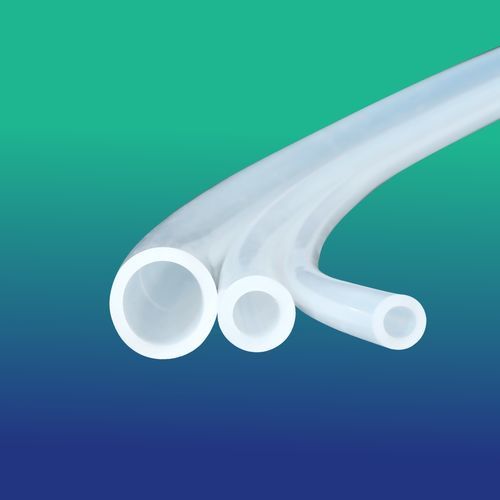

Silicone pipe Imapure®

processfor pharmaceutical applicationsperistaltic pump

Product overview
Imapure®-EPL is a platinum-cured silicone tubing engineered specifically for continuous peristaltic pump operations. Designed for enhanced durability and flexibility, it extends pump service life and provides consistent performance with minimal wear under prolonged use in biopharma and drug delivery workflows.

Key features

• Formulated to extend peristaltic pump life
• Superior resistance to flex cracking for long-duration operation
• High performance under continuous dynamic stress
• Manufactured in an ISO Class 10000 cleanroom facility
• Excellent clarity and biocompatibility
• Chemically inert and non-toxic

Applications

• Peristaltic pumps
• Cell processing
• Bio-pharma processes
• Drug delivery systems
• Vial filling

Certifications & compliance

• FDA 21 CFR 177.2600 compliant
• Extractables study conducted per BPOG guidelines
• Nitrosamine-free declaration
• Phthalate-free
• USP 87 (in vitro)
• USP 88 (in vitro)
• ISO 10993-4 (hemocompatibility)
• ISO 10993-11 (pyrogen test)

Available sizes (catalogue)
CATALOGUE | ID IN INCH | ID IN MM | OD IN INCH | OD IN MM | WT IN MM
IPEPL-012-044 | 0.047 | 1.2 | 0.173 | 4.4 | 1.6
IPEPL-015-047 | 0.059 | 1.5 | 0.185 | 4.7 | 1.6
IPEPL-016-031 | 0.063 | 1.6 | 0.125 | 3.17 | 0.785
IPEPL-020-060 | 0.079 | 2 | 0.236 | 6 | 2
IPEPL-024-056 | 0.094 | 2.4 | 0.22 | 5.6 | 1.6
IPEPL-030-080 | 0.118 | 3 | 0.315 | 8 | 2.5
IPEPL-031-047 | 0.122 | 3.1 | 0.187 | 4.76 | 0.83
IPEPL-032-064 | 0.126 | 3.2 | 0.252 | 6.4 | 1.6
IPEPL-032-047 | 0.126 | 3.2 | 0.185 | 4.7 | 0.75
IPEPL-040-060 | 0.157 | 4 | 0.236 | 6 | 1
IPEPL-047-111 | 0.185 | 4.7 | 0.437 | 11.1 | 3.2
IPEPL-047-095 | 0.187 | 4.76 | 0.374 | 9.5 | 2.37
IPEPL-047-079 | 0.187 | 4.76 | 0.311 | 7.9 | 1.57
IPEPL-048-096 | 0.189 | 4.8 | 0.378 | 9.6 | 2.4
IPEPL-050-010 | 0.197 | 5 | 0.394 | 10 | 2.5
IPEPL-050-080 | 0.197 | 5 | 0.315 | 8 | 1.5
IPEPL-055-010 | 0.217 | 5.5 | 0.394 | 10 | 2.25
IPEPL-060-120 | 0.236 | 6 | 0.472 | 12 | 3
IPEPL-060-090 | 0.236 | 6 | 0.354 | 9 | 1.5
IPEPL-060-100 | 0.236 | 6 | 0.394 | 10 | 2
IPEPL-063-127 | 0.25 | 6.35 | 0.5 | 12.7 | 3.175
IPEPL-063-111 | 0.25 | 6.35 | 0.437 | 11.11 | 2.38
IPEPL-063-095 | 0.25 | 6.35 | 0.374 | 9.5 | 1.575
IPEPL-065-112 | 0.256 | 6.5 | 0.441 | 11.2 | 2.35
IPEPL-079-111 | 0.311 | 7.9 | 0.437 | 11.11 | 1.605
IPEPL-079-127 | 0.311 | 7.9 | 0.5 | 12.7 | 2.4
IPEPL-079-174 | 0.311 | 7.9 | 0.685 | 17.4 | 4.75
IPEPL-080-130 | 0.315 | 8 | 0.512 | 13 | 2.5
IPEPL-080-140 | 0.315 | 8 | 0.551 | 14 | 3
IPEPL-080-120 | 0.315 | 8 | 0.472 | 12 | 2
IPEPL-080-110 | 0.315 | 8 | 0.433 | 11 | 1.5
IPEPL-080-160 | 0.315 | 8 | 0.63 | 16 | 4
IPEPL-090-150 | 0.354 | 9 | 0.591 | 15 | 3
IPEPL-095-159 | 0.374 | 9.5 | 0.626 | 15.9 | 3.2
IPEPL-095-127 | 0.374 | 9.5 | 0.5 | 12.7 | 1.6
IPEPL-095-142 | 0.374 | 9.5 | 0.562 | 14.28 | 2.39
IPEPL-096-144 | 0.378 | 9.6 | 0.567 | 14.4 | 2.4
IPEPL-100-180 | 0.394 | 10 | 0.709 | 18 | 4
IPEPL-100-160 | 0.394 | 10 | 0.63 | 16 | 3
IPEPL-100-140 | 0.394 | 10 | 0.551 | 14 | 2
IPEPL-120-180 | 0.472 | 12 | 0.709 | 18 | 3
IPEPL-120-160 | 0.472 | 12 | 0.63 | 16 | 2
IPEPL-127-190 | 0.5 | 12.7 | 0.75 | 19.05 | 3.175
IPEPL-158-222 | 0.625 | 15.87 | 0.875 | 22.22 | 3.175
IPEPL-160-240 | 0.63 | 16 | 0.945 | 24 | 4
IPEPL-180-300 | 0.709 | 18 | 1.181 | 30 | 6
IPEPL-190-270 | 0.748 | 19 | 1.063 | 27 | 4
IPEPL-190-250 | 0.748 | 19 | 0.984 | 25 | 3
IPEPL-190-254 | 0.75 | 19.05 | 1 | 25.4 | 3.175
IPEPL-250-350 | 0.984 | 25 | 1.378 | 35 | 5
IPEPL-200-260 | 0.787 | 20 | 1.024 | 26 | 3
IPEPL-380-560 | 1.496 | 38 | 2.205 | 56 | 9

Technical specifications

• Material: Platinum-cured silicone
• Model: Imapure®-EPL
• Intended use: Continuous peristaltic pump operations, biopharma, drug delivery, vial filling
• Manufacturing environment: ISO Class 10000 cleanroom facility
• Performance: Enhanced flex crack resistance, high durability under continuous dynamic stress
• Biocompatibility & safety: Excellent clarity and biocompatibility; chemically inert; non-toxic; phthalate-free; nitrosamine-free
• Regulatory/testing: FDA 21 CFR 177.2600 compliant; extractables study per BPOG; USP 87 and USP 88 in vitro; ISO 10993-4 (hemocompatibility); ISO 10993-11 (pyrogen test)
• Available sizes: See catalogue table above for detailed catalogue codes and dimensional data
