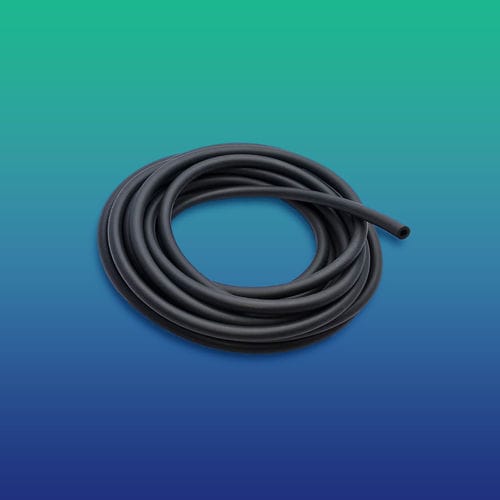

Chemical product hose Imachemton®

for solventsfor fuelfor oil

Product Overview
Imachemton® is fluoropolymer tubing (popularly known as Viton® tubing) especially designed for highly corrosive chemicals and solvents used in pharmaceutical industries. It is manufactured in a dedicated controlled environment to comply with critical food and pharma grade standards.

Characteristics

• Manufactured and packaged in Clean Room Class of ISO-7 certified facility audited by TUV Nord.
• Excellent resistance to alcohols, acids, halogenated solvents (e.g. IPA & MDC).
• Greater flame & fire resistance.
• Service temperature range: -15°C to +250°C.
• Available in 60 Shore A & 70 Shore A hardness.
• Available in Black & Off-white color.
• Double polybag packaged in standard pack size of 25 mtr (custom packing sizes available).

Applications

• Corrosive chemical transfer
• Chlorinated, fluorinated chemical transfer
• Chemical and analytical analysis
• Fuel and oil industries

Certifications & Additional Information

• E & L Study available on request
• FDA 21 CFR 177.2600 Certificate
• USP Class VI Certificate
• RoHS Certification
• Phthalates / Bis Phenol / Plasticizer free Certification
• TSE/BSE Free Certification
• 5 years Shelf Life

Catalogue
CATALOGUE | ID IN INCH | OD IN INCH | THICKNESS IN INCH | ID IN MM | OD IN MM
5020-0016-078 | 1/16 | 1/8 | 1/32 | 1.60 | 3.17
5020-0016-158 | 1/16 | 13/64 | 1/16 | 1.60 | 4.76
5020-0016-240 | 1/16 | 1/4 | 3/32 | 1.6 | 6.4
5020-0008-160 | 1/32 | 5/32 | 1/16 | 0.8 | 4
5020-0008-240 | 1/32 | 7/32 | 3/32 | 0.8 | 5.6
5020-0005-160 | 1/64 | 9/64 | 1/16 | 0.5 | 3.7
5020-0005-240 | 1/64 | 13/64 | 3/32 | 0.5 | 5.3
5020-0020-100 | 5/64 | 5/32 | 3/64 | 2.00 | 4.00
5020-0020-150 | 5/64 | 13/64 | 1/16 | 2.00 | 5.00
5020-0031-159 | 1/8 | 1/4 | 1/16 | 3.17 | 6.35
5020-0030-150 | 1/8 | 1/4 | 1/16 | 3.00 | 6.00
5020-0030-200 | 1/8 | 9/32 | 5/64 | 3.00 | 7.00
5020-0030-250 | 1/8 | 5/16 | 2.32 | 3.00 | 8.00
5020-0040-100 | 5/32 | 1/4 | 3/64 | 4.00 | 6
5020-0040-150 | 5/32 | 9/32 | 1/16 | 4.00 | 7.00
5020-0040-200 | 5/32 | 5/16 | 5/64 | 4.00 | 8
5020-0040-250 | 5/32 | 23/64 | 3/32 | 4.00 | 9.00
5020-0040-300 | 5/32 | 25/64 | 1/8 | 4.00 | 10.0
5020-0047-157 | 3/16 | 5/16 | 1/16 | 4.76 | 7.90
5020-0047-237 | 3/16 | 3/8 | 3/32 | 4.76 | 9.50
5020-0024-160 | 3/32 | 7/32 | 1/16 | 2.4 | 5.6
5020-0012-160 | 3/64 | 11/64 | 1/16 | 1.2 | 4.4
5020-0050-150 | 13/64 | 5/16 | 1/16 | 5.00 | 8
5020-0050-200 | 13/64 | 23/64 | 5/64 | 5 | 9.00
5020-0050-250 | 13/64 | 25/64 | 3/32 | 5 | 10
5020-0050-300 | 13/64 | 7/16 | 1/8 | 5.00 | 11.0
5020-0060-100 | 15/64 | 5/16 | 3/64 | 6.00 | 8.00
5020-0060-150 | 15/64 | 23/64 | 1/16 | 6.00 | 9.00
5020-0060-200 | 15/64 | 25/64 | 5/64 | 6.00 | 10.0
5020-0060-250 | 15/64 | 7/16 | 3/32 | 6.00 | 11.0
5020-0060-300 | 15/64 | 15/32 | 1/8 | 6.00 | 12
5020-0063-157 | 1/4 | 3/8 | 1/16 | 6.35 | 9.50
5020-0063-238 | 1/4 | 7/16 | 3/32 | 6.35 | 11.11
5020-0063-317 | 1/4 | 1/2 | 1/8 | 6.35 | 12.70
5020-0079-240 | 5/16 | 1/2 | 3/32 | 7.90 | 12.7
5020-0080-150 | 5/16 | 7/16 | 1/16 | 8.00 | 11.0
5020-0080-200 | 5/16 | 15/32 | 5/64 | 8.00 | 12.0
5020-0080-300 | 5/16 | 35/64 | 1/8 | 8.00 | 14.0
5020-0080-400 | 5/16 | 5/8 | 5/32 | 8 | 16.0
5020-0079-240 | 5/16 | 1/2 | 3/32 | 8 | 12.8
5020-0090-300 | 23/64 | 19/32 | 1/8 | 9.00 | 15.0
5020-0090-350 | 23/64 | 5/8 | 9/64 | 9.00 | 16.0
5020-0095-160 | 3/8 | 1/2 | 1/16 | 9.50 | 12.70
5020-0095-239 | 3/8 | 9/32 | 3/32 | 9.50 | 14.28
5020-0095-318 | 3/8 | 5/8 | 1/8 | 9.50 | 15.87
5020-0095-477 | 3/8 | 3/4 | 3/16 | 9.50 | 19.05
5020-0100-200 | 25/64 | 35/64 | 5/64 | 10.0 | 14.0
5020-0100-300 | 25/64 | 5/8 | 1/8 | 10.0 | 16.0
5020-0100-400 | 25/64 | 45/64 | 5/32 | 10.0 | 18.0
5020-0120-200 | 15/32 | 5/8 | 5/64 | 12 | 16
5020-0120-300 | 15/32 | 45/64 | 1/8 | 12 | 18.0
5020-0120-400 | 15/32 | 25/32 | 5/32 | 12 | 20.0
5020-0127-238 | 1/2 | 11/16 | 3/32 | 12.70 | 17.46
5020-0127-317 | 1/2 | 3/4 | 1/8 | 12.70 | 19.05
5020-0127-476 | 1/2 | 7/8 | 3/16 | 12.70 | 22.22
5020-0127-635 | 1/2 | 1 | 1/4 | 12.70 | 25.4
5020-0150-300 | 19/32 | 53/64 | 1/8 | 15.0 | 21.0
5020-0158-317 | 5/8 | 7/8 | 1/8 | 15.87 | 22.22
5020-0158-476 | 5/8 | 1 | 3/16 | 15.87 | 25.4
5020-0160-400 | 5/8 | 15/16 | 5/32 | 16.00 | 24.0
5020-0190-300 | 3/46 | 3/64 | 1/8 | 19.00 | 25
5020-0190-400 | 3/4 | 1-1/16 | 5/32 | 19.00 | 27.0
5020-0190-320 | 3/4 | 1 | 1/8 | 19.05 | 25.4
5020-0190-470 | 3/4 | 1-1/8 | 3/16 | 19.05 | 28.57
5020-0190-640 | 3/4 | 1-1/4 | 1/4 | 19.05 | 31.75
5020-0250-300 | 63/64 | 1-7/32 | 1/8 | 25.0 | 31.0
5020-0250-500 | 63/64 | 1-3/8 | 13/64 | 25 | 35.0
5020-0250-600 | 63/64 | 1-29/64 | 15/64 | 25.0 | 37.0
5020-0250-170 | 1 | 1-1/8 | 3/16 | 25.40 | 28.75
5020-0250-640 | 1 | 1-1/2 | 1/4 | 25.40 | 38.1
5020-0254-480 | 1 | 3/8 | 3/16 | 25.4 | 35

Caractéristiques / Spécifications techniques

• Material: Fluoro elastomer (FKM / Viton® type)
• Intended use: Transfer of highly corrosive chemicals and solvents; pharma and food grade compatible manufacturing
• Service Temperature: -15°C to +250°C
• Hardness: 60 Shore A and 70 Shore A
• Colors available: Black and Off-white
• Packaging: Double polybag; standard pack size 25 mtr (custom sizes available)
• Manufacturing environment: ISO-7 clean room certified facility (TUV Nord audited)
• Chemical resistance: Good resistance to alcohols, acids, halogenated solvents (e.g. IPA, MDC)
• Fire resistance: Enhanced flame & fire resistance
• Shelf life: 5 years
• Relevant certificates: FDA 21 CFR 177.2600, USP Class VI, RoHS, Phthalate/BisPhenol/Plasticizer free, TSE/BSE free; E&L study available on request
