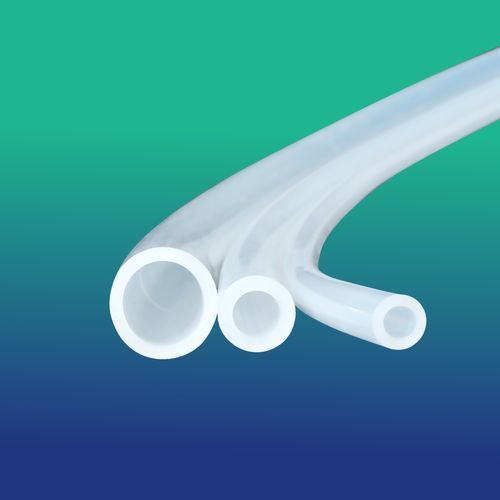

High-purity fluid hose Imapure®-EPL

siliconeperistaltic pumpfor clean rooms

Product overview
Imapure®-EPL is a platinum-cured silicone tubing engineered for continuous peristaltic pump operations in biopharma and drug‑delivery environments. It is formulated to deliver extended pump life with consistent performance and minimal wear under prolonged dynamic conditions.

Key features

• Formulated to extend peristaltic pump service life
• Superior flex‑crack resistance for long‑duration operation
• Stable performance under continuous dynamic stress
• Manufactured in an ISO Class 10000 cleanroom facility
• Excellent clarity and biocompatibility
• Chemically inert and non‑toxic

Applications

• Peristaltic pumps
• Cell processing
• Bio‑pharma processes
• Drug delivery systems
• Vial filling

Certifications & compliance

• FDA 21 CFR 177.2600 compliant
• Extractables study conducted per BPOG guidelines
• Nitrosamine free declaration
• Phthalate free
• USP <87> in vitro
• USP <88> in vitro
• ISO 10993-4 (Hemocompatibility)
• ISO 10993-11 (Pyrogen test)

Available sizes (Catalogue)
CATALOGUE | ID IN INCH | ID IN MM | OD IN INCH | OD IN MM | WT IN MM
IPEPL-012-044 | 0.047 | 1.2 | 0.173 | 4.4 | 1.6
IPEPL-015-047 | 0.059 | 1.5 | 0.185 | 4.7 | 1.6
IPEPL-016-031 | 0.063 | 1.6 | 0.125 | 3.17 | 0.785
IPEPL-020-060 | 0.079 | 2 | 0.236 | 6 | 2
IPEPL-024-056 | 0.094 | 2.4 | 0.22 | 5.6 | 1.6
IPEPL-030-080 | 0.118 | 3 | 0.315 | 8 | 2.5
IPEPL-031-047 | 0.122 | 3.1 | 0.187 | 4.76 | 0.83
IPEPL-032-064 | 0.126 | 3.2 | 0.252 | 6.4 | 1.6
IPEPL-032-047 | 0.126 | 3.2 | 0.185 | 4.7 | 0.75
IPEPL-040-060 | 0.157 | 4 | 0.236 | 6 | 1
IPEPL-047-111 | 0.185 | 4.7 | 0.437 | 11.1 | 3.2
IPEPL-047-095 | 0.187 | 4.76 | 0.374 | 9.5 | 2.37
IPEPL-047-079 | 0.187 | 4.76 | 0.311 | 7.9 | 1.57
IPEPL-048-096 | 0.189 | 4.8 | 0.378 | 9.6 | 2.4
IPEPL-050-010 | 0.197 | 5 | 0.394 | 10 | 2.5
IPEPL-050-080 | 0.197 | 5 | 0.315 | 8 | 1.5
IPEPL-055-010 | 0.217 | 5.5 | 0.394 | 10 | 2.25
IPEPL-060-120 | 0.236 | 6 | 0.472 | 12 | 3
IPEPL-060-090 | 0.236 | 6 | 0.354 | 9 | 1.5
IPEPL-060-100 | 0.236 | 6 | 0.394 | 10 | 2
IPEPL-063-127 | 0.25 | 6.35 | 0.5 | 12.7 | 3.175
IPEPL-063-111 | 0.25 | 6.35 | 0.437 | 11.11 | 2.38
IPEPL-063-095 | 0.25 | 6.35 | 0.374 | 9.5 | 1.575
IPEPL-065-112 | 0.256 | 6.5 | 0.441 | 11.2 | 2.35
IPEPL-079-111 | 0.311 | 7.9 | 0.437 | 11.11 | 1.605
IPEPL-079-127 | 0.311 | 7.9 | 0.5 | 12.7 | 2.4
IPEPL-079-174 | 0.311 | 7.9 | 0.685 | 17.4 | 4.75
IPEPL-080-130 | 0.315 | 8 | 0.512 | 13 | 2.5
IPEPL-080-140 | 0.315 | 8 | 0.551 | 14 | 3
IPEPL-080-120 | 0.315 | 8 | 0.472 | 12 | 2
IPEPL-080-110 | 0.315 | 8 | 0.433 | 11 | 1.5
IPEPL-080-160 | 0.315 | 8 | 0.63 | 16 | 4
IPEPL-090-150 | 0.354 | 9 | 0.591 | 15 | 3
IPEPL-095-159 | 0.374 | 9.5 | 0.626 | 15.9 | 3.2
IPEPL-095-127 | 0.374 | 9.5 | 0.5 | 12.7 | 1.6
IPEPL-095-142 | 0.374 | 9.5 | 0.562 | 14.28 | 2.39
IPEPL-096-144 | 0.378 | 9.6 | 0.567 | 14.4 | 2.4
IPEPL-100-180 | 0.394 | 10 | 0.709 | 18 | 4
IPEPL-100-160 | 0.394 | 10 | 0.63 | 16 | 3
IPEPL-100-140 | 0.394 | 10 | 0.551 | 14 | 2
IPEPL-120-180 | 0.472 | 12 | 0.709 | 18 | 3
IPEPL-120-160 | 0.472 | 12 | 0.63 | 16 | 2
IPEPL-127-190 | 0.5 | 12.7 | 0.75 | 19.05 | 3.175
IPEPL-158-222 | 0.625 | 15.87 | 0.875 | 22.22 | 3.175
IPEPL-160-240 | 0.63 | 16 | 0.945 | 24 | 4
IPEPL-180-300 | 0.709 | 18 | 1.181 | 30 | 6
IPEPL-190-270 | 0.748 | 19 | 1.063 | 27 | 4
IPEPL-190-250 | 0.748 | 19 | 0.984 | 25 | 3
IPEPL-190-254 | 0.75 | 19.05 | 1 | 25.4 | 3.175
IPEPL-250-350 | 0.984 | 25 | 1.378 | 35 | 5
IPEPL-200-260 | 0.787 | 20 | 1.024 | 26 | 3
IPEPL-380-560 | 1.496 | 38 | 2.205 | 56 | 9

Technical characteristics / specifications

• Commercial name: Imapure®-EPL
• Material: Platinum-cured silicone
• Designed for: continuous peristaltic pump operations
• Key properties: extended pump life, enhanced durability, flexibility, superior flex‑crack resistance
• Manufacturing environment: ISO Class 10000 cleanroom facility
• Biocompatibility: Excellent clarity and biocompatibility
• Chemical properties: Chemically inert and non‑toxic; Phthalate free; Nitrosamine free declaration
• Regulatory & test compliance: FDA 21 CFR 177.2600; Extractables study per BPOG; USP <87> and USP <88> in vitro; ISO 10993-4 (Hemocompatibility); ISO 10993-11 (Pyrogen test)
