Needle

Product Description

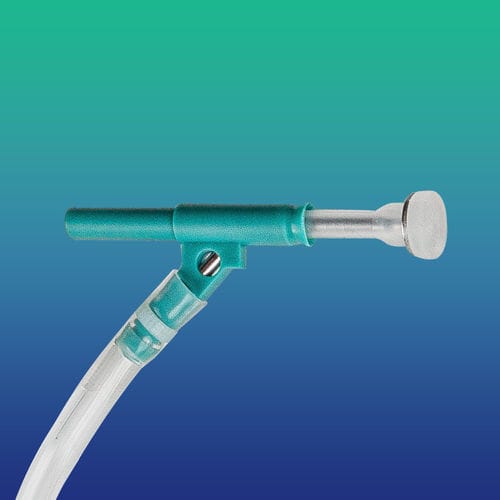

Sampling needle is designed for use in biopharma applications, specifically for sampling system bags. The device provides flexible compatibility with common bag materials and liquid solutions while maintaining a closed sampling interface to limit contamination risk.

Size Available
Part | Material
Needle | Stainless Steel
Plug / Sleeve | Platinum-cured Silicone
Body | Polypropylene

Inserting Procedure

• Step 1: Rotate the check nut on the rear of the sleeve counter-clockwise to open the front TC portion of the sampling port adapter.
• Step 2: Detach the front TC portion of the sampling port adapter from the sleeve.
• Step 3: Insert the sampling needle into the grooves provided in the sleeve until fully seated.
• Step 4: Attach the stainless steel sanitary flange to the sleeve and secure the assembly.

Certifications

• USP Class VI
• USP <85> Bacterial Endotoxins - LAL test
• USP <661.1> Extractable metals
• USP <788> Sub visible particulate matter

Features and Benefits

• Closed sampling design for aseptic transfer
• Reduces risk of contamination during sampling
• Presterilized, eliminating the need for cleaning or sterilization between samples
• Available with 1 mm or 2 mm needle hole

Technical specifications

• Intended use: sampling in biopharma applications, for sampling system bags
• Needle material: Stainless Steel
• Plug / Sleeve material: Platinum-cured Silicone
• Body material: Polypropylene
• Needle hole sizes available: 1 mm and 2 mm
• Product delivered presterilized
• Closed sampling design reduces contamination risk
• Compliance / tests: USP Class VI, USP <85> (Bacterial Endotoxins - LAL), USP <661.1> (Extractable metals), USP <788> (Sub visible particulate matter)
