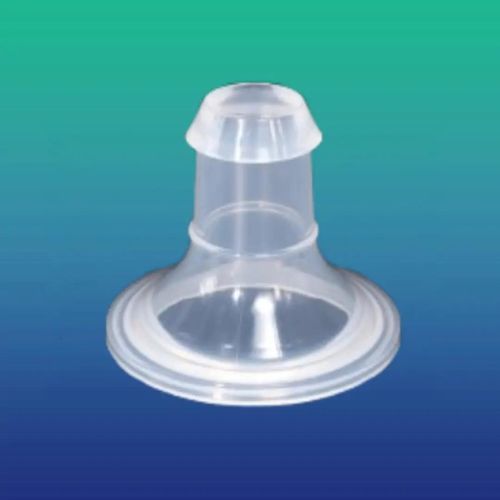

Round tube connector PP-TC series

plasticpolypropyleneadapter sleeve

Product Overview
Cleanroom molded Triclover (TC) sanitary connector PP-TC series is designed for single-use fluid path assemblies in biotechnology and pharmaceutical manufacturing. Manufactured in cleanrooms within an ISO 9001 certified facility, the connector provides an aseptic transition between TC fittings and tubing for bioprocess applications.

Standard Sizes Available
Part No. | Triclover Size | Tube Size (Inch) | Tube Size (MM)
PP-TC-0.75-1.25HB | 3/4" TC | 1/8" | 3.17
PP-TC-0.75-0.25HB | 3/4" TC | 1/4" | 6.35
PP-TC-0.75-0.37HB | 3/4" TC | 3/8" | 9.52
PP-TC-0.75-0.75HB | 3/4" TC | 3/4" | 19.05
PP-TC-0.75-0.50HB | 3/4" TC | 1/2" | 12.70
PP-TC-1.50-0.50HB | 1.5" TC | 1/2" | 12.70
PP-TC-1.50-0.75HB | 1.5" TC | 3/4" | 19.05
PP-TC-1.50-0.25HB | 1.5" TC | 1/4" | 6.35
PP-TC-1.50-0.37HB | 1.5" TC | 3/8" | 9.52
PP-TC-1.50-1.00HB | 1.5" TC | 1" | 25.4
PP-TC-1.00-0.50HB | 1" TC | 1/2" | 12.7
PP-TC-2.50-0.50HB | 2.5" TC | 1/2" | 12.7
PP-TC-2.50-0.75HB | 2.5" TC | 3/4" | 19.07

Applications

• Single-use assemblies and tubing transitions in bioprocessing lines
• Aseptic connections between Triclover fittings and flexible tubing
• Adaptation of different tubing outer diameters within disposable fluid paths

Certifications & Tests

• FDA 21 CFR 177.1520 (Food grade test)
• USP <88> Biological reactivity tests, In Vivo
• USP <87> Biological reactivity tests, In Vitro
• Extractables study performed

Advantages

• Aseptic, single-use connection designed for bioprocess workflows
• Simplifies tubing changeover and reduces assembly time
• Compatibility with standard TC fittings and multiple tubing ODs

Regulatory compliance Declaration

• REACH
• RoHS
• TSE/BSE statements
• Melamine-free
• Phthalates-free
• Bisphenol A-free

Technical Specification

• Material of Construction: Polypropylene (medical/bioprocess grade)
• Sterilization compatibility: Autoclave up to 135°C for max 30 minutes; gamma irradiation up to 50 KGy
• Storage: Keep in original packaging where possible; store in a cool, dry place away from direct sunlight and aggressive chemicals. Acceptable warehouse conditions: 5°C−40°C.

Product Characteristics

• Product type: Cleanroom-molded Triclover (TC) sanitary connector / reducer for single-use fluid paths
• Manufacturing: Produced in cleanrooms under ISO 9001 quality management
• Intended use: Single-use assemblies, bioprocess tubing transitions, aseptic connections
• Available part numbers and sizes: See Standard Sizes Available above (multiple PP-TC part numbers covering 3/4", 1", 1.5", 2.5" TC with various tubing OD options)
