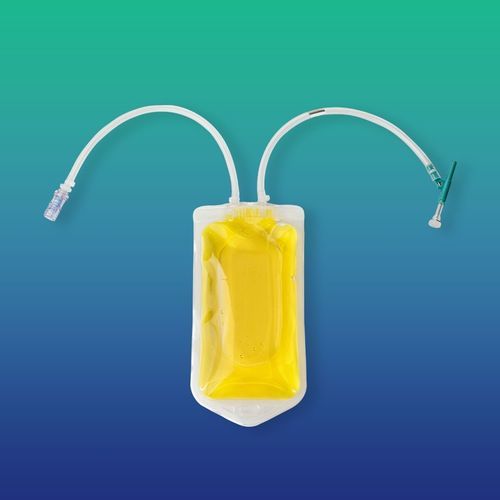

Liquid sampling kit 2D-SS series

sterile

Overview
Designed to preserve sample integrity during critical bioprocessing operations. The 2D-SS sterile sampling system reduces the risk of cross-contamination and supports aseptic sampling workflows to facilitate quality control and regulatory compliance.

Applications

• In-process sampling during drug and biotherapeutic manufacturing
• Sterile sampling for cell culture, fermentation and research laboratories
• Sample collection for quality control and analytical testing

Certifications

• Class VI Plastics as per USP <88>
• Cytotoxicity as per USP <87>
• USP <85> Bacterial Endotoxins
• USP <661.1> Extractable metals
• SP <788> Sub visible particulate matter
• USP <71> & ISO <11737-1> Sterility assurance

Features / Benefits

• Controls contamination risks during sampling
• Provides consistent and reproducible samples
• Designed for regulatory compliance and safe handling
• Customizable to meet process-specific requirements

Characteristics

• Minimizes false positives and reduces cleaning cycles compared with traditional sampling methods
• Available in multiple configurations to match process requirements

Components (table)
1 | Bag | 9101 Infuflex Film
2 | Tube | TPE and Silicone
3 | Needless sampling port | Body - Polycarbonate; Septum - Silicone
4 | Female Luer Lock | Polypropylene
5 | Male Luer Plug | Polypropylene
6 | Sampling needle | Needle - SS 316L; Body - Polypropylene; Septum - Silicone

Standard Sizes Available (table)
# | CATALOGUE NO. | Description
1 | 2D-SS-050M-01 | Sterile sampling system with 1 x 50ml bag
2 | 2D-SS-100M-01 | Sterile sampling system with 1 x 100ml bag
3 | 2D-SS-250M-01 | Sterile sampling system with 1 x 250ml bag
4 | 2D-SS-500M-01 | Sterile sampling system with 1 x 500ml bag
5 | 2D-SS-001L-01 | Sterile sampling system with 1 x 1L bag

Technical specifications

• Bag material: 9101 Infuflex Film
• Tubing materials: TPE and Silicone
• Needless sampling port: Body - Polycarbonate; Septum - Silicone
• Female Luer Lock: Polypropylene
• Male Luer Plug: Polypropylene
• Sampling needle: Needle - SS 316L; Body - Polypropylene; Septum - Silicone
• Sterility and biocompatibility standards: USP <88>, USP <87>, USP <85>, USP <661.1>, SP <788>, USP <71> and ISO <11737-1>
• Benefits: minimizes false positives, reduces cleaning requirements, contamination control, accurate and consistent results
• Customization: available to meet specific process requirements
• Available catalogue variants: 2D-SS-050M-01, 2D-SS-100M-01, 2D-SS-250M-01, 2D-SS-500M-01, 2D-SS-001L-01
