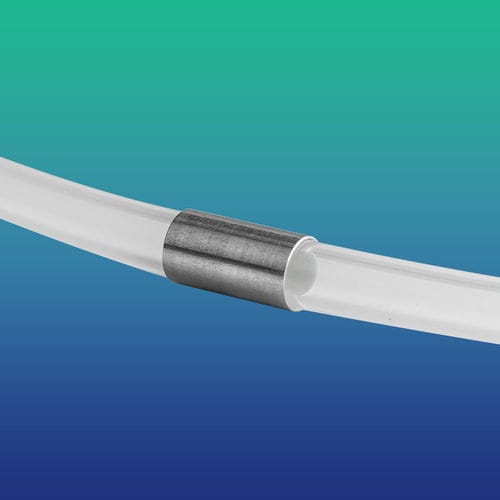

Bush CP-0 series

Sealing solutions for single-use bioprocess applications
Our aseptic bush is engineered for single-use bioprocessing and pharmaceutical sampling workflows. Manufactured from biocompatible materials, the component provides a crimping, leak-proof connection designed for tool-free installation and minimized contamination risk. It is compatible with a wide range of single-use tubing and components and is available in multiple catalogued sizes to ease integration into sampling manifolds and fluid transfer lines.

Standard sizes available

• CP-0.300-0.530 — Tube OD 5.3 mm — Aseptic bush ID 5.4 mm — OD 6.4 mm — Length 20 mm
• CP-0.125-0.250 — Tube OD 6.35 mm — Aseptic bush ID 6.7 mm — OD 7.7 mm — Length 20 mm
• CP-0.250-0.375 — Tube OD 9.5 mm — Aseptic bush ID 9.8 mm — OD 10.8 mm — Length 20 mm
• CP-0.125-0.437 — Tube OD 11.11 mm — Aseptic bush ID 11.5 mm — OD 12.5 mm — Length 30 mm
• CP-0.125-0.500 — Tube OD 12.7 mm — Aseptic bush ID 13 mm — OD 14 mm — Length 40 mm
• CP-0.375-0.625 — Tube OD 15.8 mm — Aseptic bush ID 16.1 mm — OD 17.1 mm — Length 45.1 mm

Application

• Sampling manifold systems
• Sampling bags
• Sampling fluid transfer lines

Features / Benefits

• Leak-proof crimping design for secure connections
• Reduced contamination risk during installation and handling
• Functions as an aseptic disconnector for controlled sampling

Characteristics

• Maintains product sterility when used in non-aseptic environments
• Suitable for multiple tubing types and sizes
• Improves process reliability for pharma and biopharma applications

Technical specifications

• Material: biocompatible materials suitable for single-use bioprocessing
• Design: leak-proof crimping design enabling secure, tool-free installation
• Function: serves as an aseptic disconnect/disconnector to reduce contamination risk
• Compatibility: compatible with a broad range of single-use bioprocessing components
• Quality: certified for quality and produced with sustainability considerations
• Available sizes (catalogue no — Tube OD — ID — OD — Length):
  • CP-0.300-0.530 — 5.3 mm — 5.4 mm — 6.4 mm — 20 mm
  • CP-0.125-0.250 — 6.35 mm — 6.7 mm — 7.7 mm — 20 mm
  • CP-0.250-0.375 — 9.5 mm — 9.8 mm — 10.8 mm — 20 mm
  • CP-0.125-0.437 — 11.11 mm — 11.5 mm — 12.5 mm — 30 mm
  • CP-0.125-0.500 — 12.7 mm — 13 mm — 14 mm — 40 mm
  • CP-0.375-0.625 — 15.8 mm — 16.1 mm — 17.1 mm — 45.1 mm
