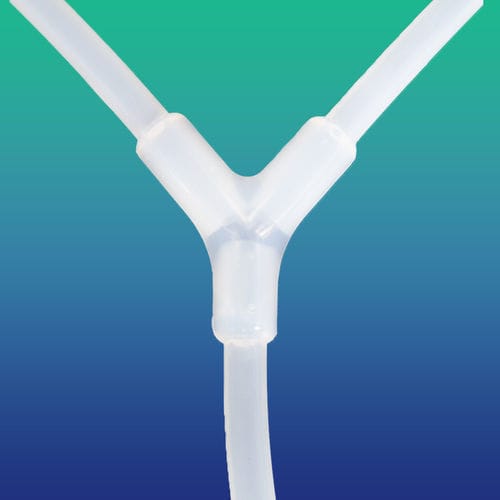

Y tube connector ImaLINK™

plastic

Overview
Ami Polymer ImaLINK™ single-use molded tubing manifold provides seamless fluid paths by integrating molded straight tubing sections and molded connectors (T, Y, X and Tri‑Clamp). The design eliminates barbed fittings and reduces potential leak and entrapment points for continuous, unrestricted, leak‑proof flow suitable for bioprocess applications.

Standard Size Available

• Multiple ImaLINK™ manifold options offered across a wide range of internal diameters to match process flow requirements.
• Manufactured in an ISO Class 7 cleanroom with controlled production from raw materials to finished assemblies.

Application

• Buffer and media transfer (feeds, addition of base/acid, antifoam, growth media and other process liquids)
• Sample collection with minimized contamination risk
• Media filtration and sterile fluid handling
• Inoculation lines
• Liquid removal from bioprocess vessels
• Carboy and reservoir assemblies
• Peristaltic pump tubing assemblies

Compliance and Certification

• FDA 21 CFR 177.2600
• USP Class VI
• USP 87 (Biological Reactivity Tests)
• ISO 10993 series
• USP 381 elastomeric closure for injection
• EP 3.1.9
• BPOG standardized extractables testing available

Characteristics

• Seamless molded tubing sections and molded connectors to eliminate barbed fittings and reduce entrapment zones
• Offered in a broad range of internal dimensions for process-specific flow control
• Manufactured and assembled in ISO Class 7 cleanroom environment with controlled documentation

Key Features

• Customizable tube manifolds to meet precise process and design requirements
• Tubing materials free from BPA, latex, phthalates and ADI
• Materials selected to meet FDA 21 CFR 177 standards and USP Class VI requirements
• BPOG standardized extractables testing supported
• Assembled and packaged in ISO Class 7 cleanroom
• Optional components: overmolded connectors, barbed connectors, inline filters, clamps and various tubing options

Technical specifications

• Product name / series: ImaLINK™ (Ami Polymer)
• Manufacturing environment: ISO Class 7 cleanroom
• Materials: USP Class VI approved materials; tubing free from BPA, latex, phthalates and ADI
• Regulatory compliance: FDA 21 CFR 177.2600; USP Class VI; USP 87; ISO 10993; USP 381; EP 3.1.9
• Testing: BPOG standardized extractables testing available
• Design: Molded tubing sections and molded connectors (T, Y, X, Tri‑Clamp) providing seamless, leak‑proof flow without barbed fittings
• Customization: Wide range of internal dimensions and customizable manifold assemblies to meet exact process requirements
• Packaging: Assembled and packaged in ISO Class 7 cleanroom with traceable documentation
