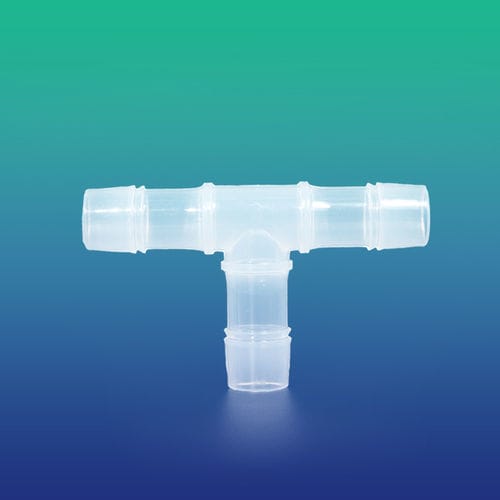

T-shaped tube connector

polypropylene

Product Overview
Cleanroom-molded PP T-connector is designed for single-use fluid path assemblies in biotechnology and pharmaceutical applications. Manufactured in controlled cleanroom environments within facilities operating an ISO 9001 quality management system, the connector supports aseptic connections and reduces cross-contamination risk.

Standard Sizes Available

• 3/4" x 3/4" x 3/4"
• 1/2" x 1/2" x 1/2"
• 3/8" x 3/8" x 3/8"
• 1/4" x 1/4" x 1/4"

Applications

• Single-use assembly lines and tubing manifolds.
• Fitting solution for bioprocessing and pharmaceutical fluid handling.
• Connection point for sterile tubing and disposable assemblies.

Certifications

• FDA 21 CFR 177.1520 <Food grade test>
• USP <88> Biological reactivity tests, In Vivo
• USP <87> Biological reactivity tests, In Vitro
• Extractables study

Advantages

• Aseptic, single-use connection enabling process safety.
• Improves assembly efficiency in disposable systems.
• Compatible with standard tubing sizes.

Regulatory Compliance Declaration

• REACH legislation
• RoHS
• TSE/BSE
• Melamine
• Phthalates
• Bisphenol A

Technical Specification

• Material of Construction (MOC): Polypropylene (PP)
• Mode of Sterilization: Autoclave up to 135°C for maximum 30 minutes; gamma irradiation up to 50 kGy
• Storage: Keep in original packaging where possible; store at 5°C–40°C in a cool, dry place away from direct sunlight and harsh chemicals
• Quality: Manufactured in cleanrooms within an ISO 9001 quality management system
